Wanptek 30V 5A 10A 60V 5A 120V 3A Lab DC Power Supply Adjustable Digit Display memory function Power Supplies Voltage Regulator
Wanptek 30V 5A 10A 60V 5A 120V 3A Lab DC Power Supply Adjustable Digit Display memory function Power Supplies Voltage Regulator
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE,FCC,RoHS
High-concerned chemical: None

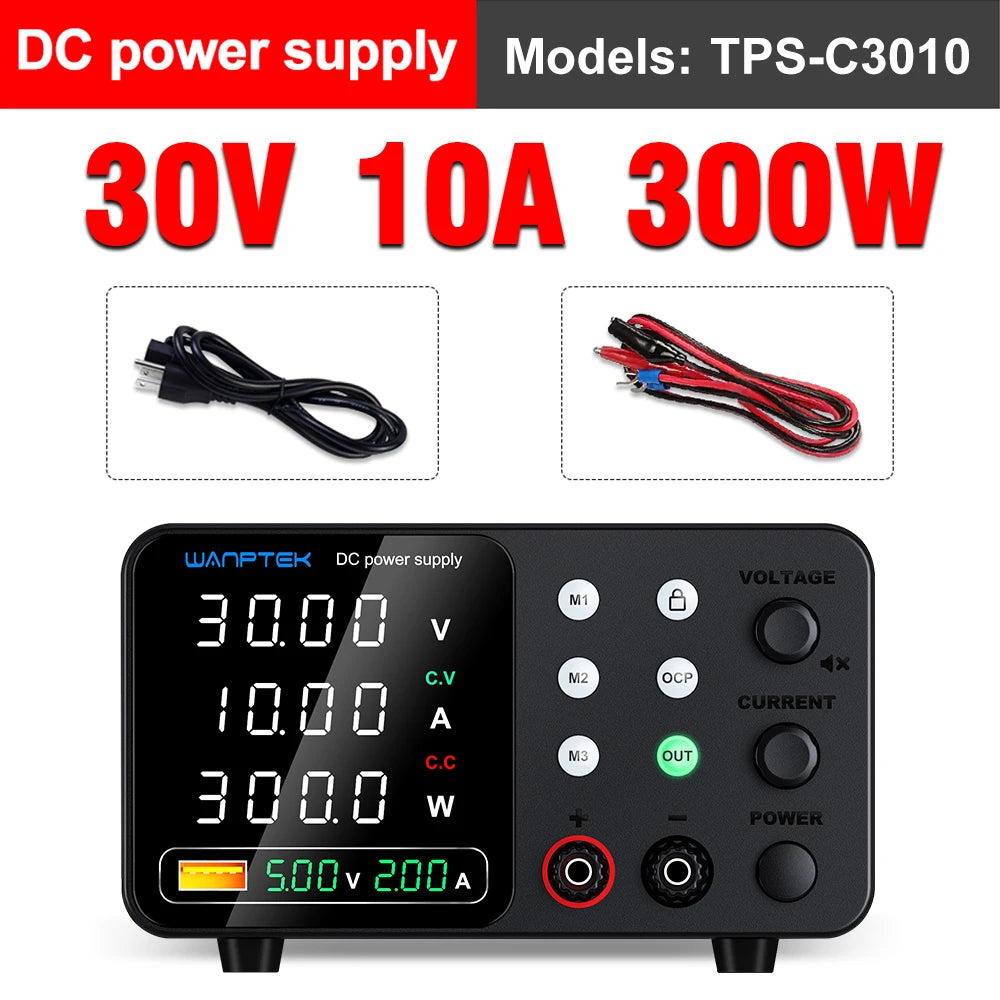

Model Number: EPS3210 APS3010H TPS-C3010
Origin: Mainland China
Output Current: 0-10A
Output Frequency: 50HZ 60HZ
Output Type: SINGLE
Rated Capacity: ＜40VA
Type: Power Supply
is_customized: No

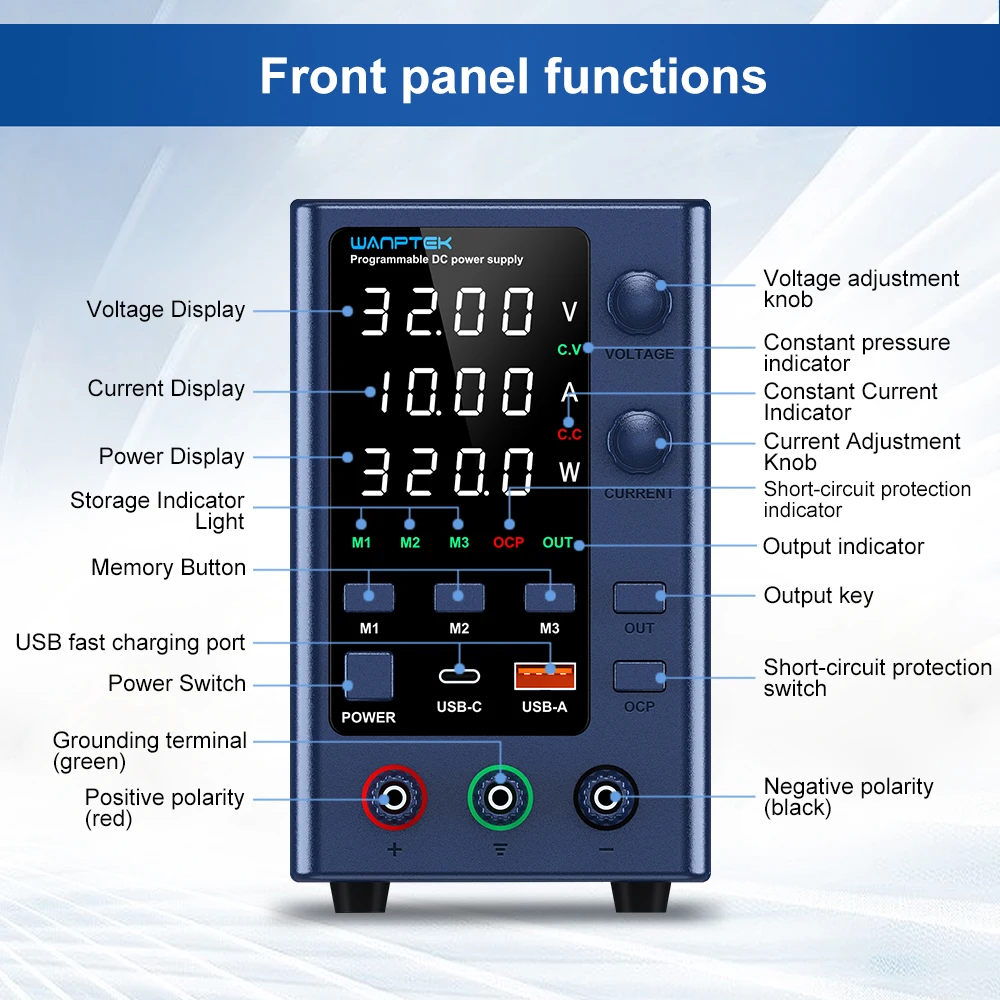

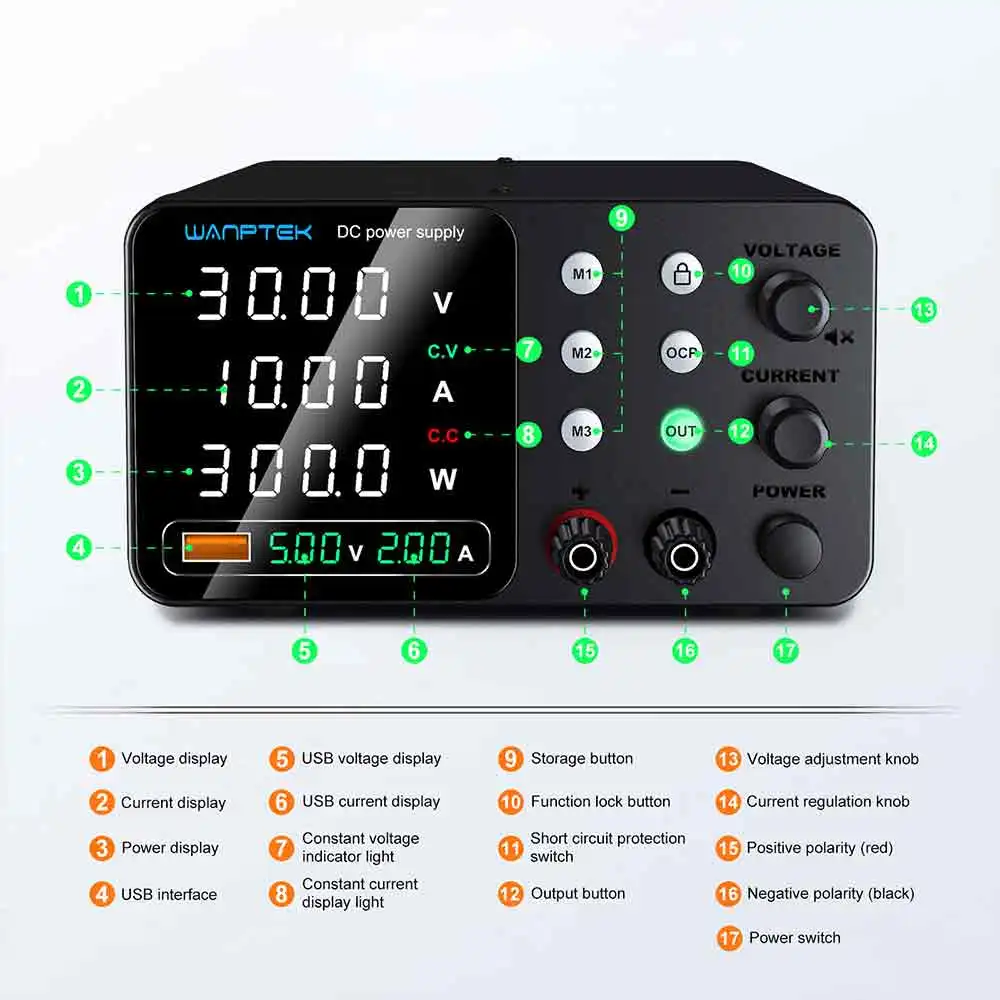

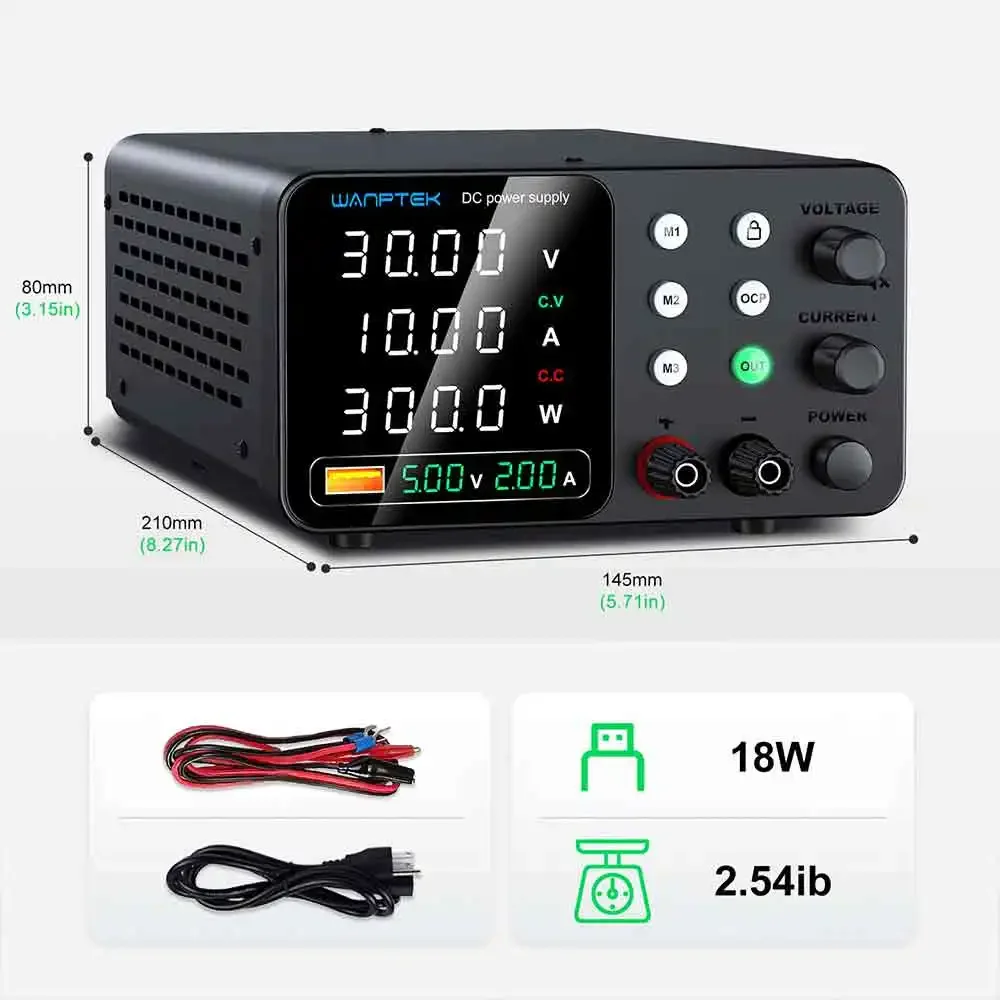

Wanptek's new series of products. This model is a miniature switch DC power supply. The output voltage and current can be controlled and adjusted separately by the encoder, providing more convenience and accuracy in voltage and current regulation. The panel also provides high-precision three window digital display of voltage, current, and power, allowing users to intuitively see the current usage status and various parameters of the machine. Three sets of stored data are provided for easier operation,

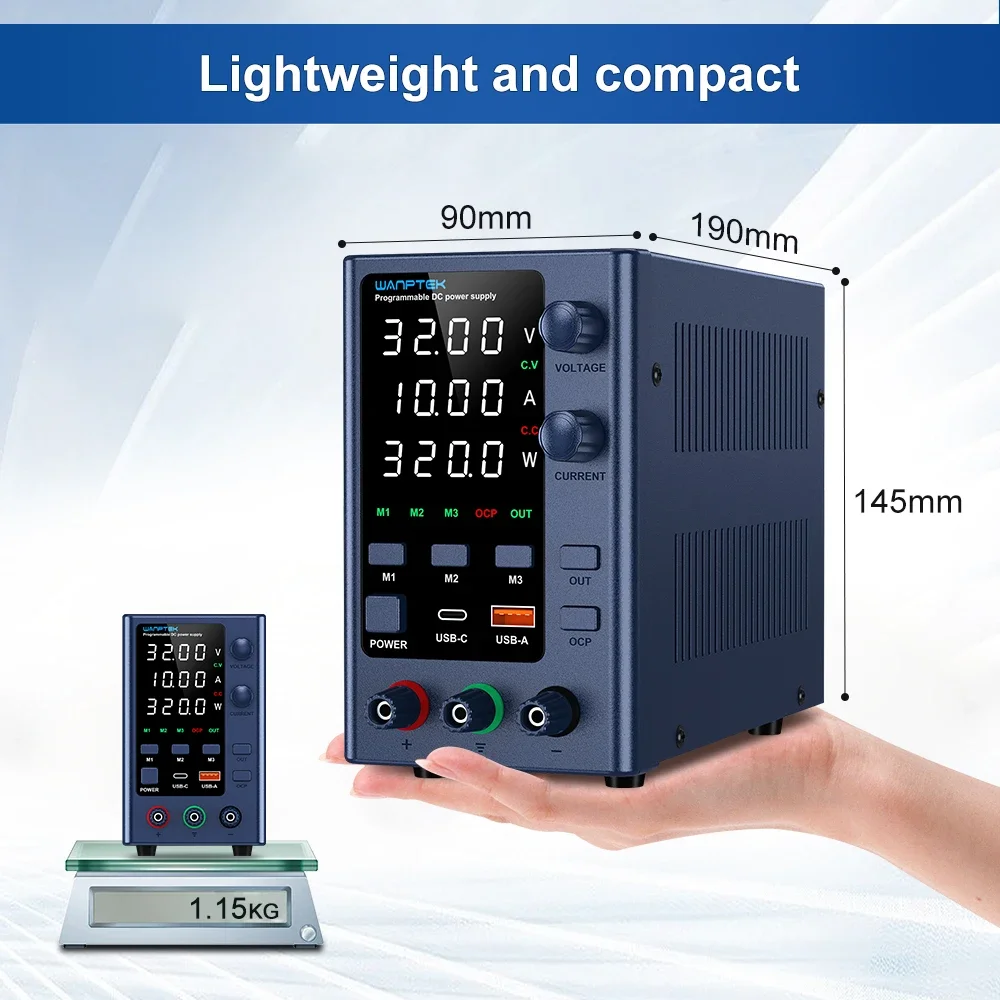

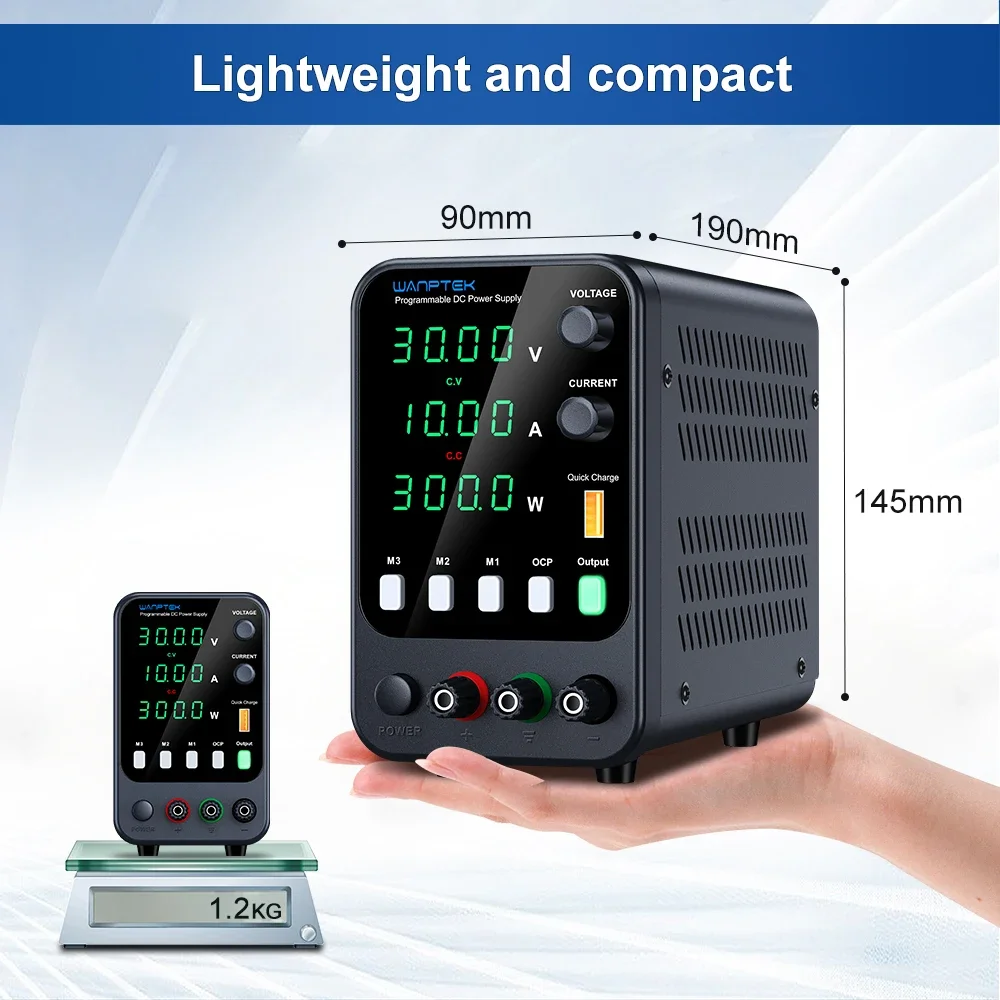

1.Small size, light weight and high power density. weight of only 2.6 pounds. You can easily take the DC power supply to work.
2.Constant pressure and constant current switch automatically.

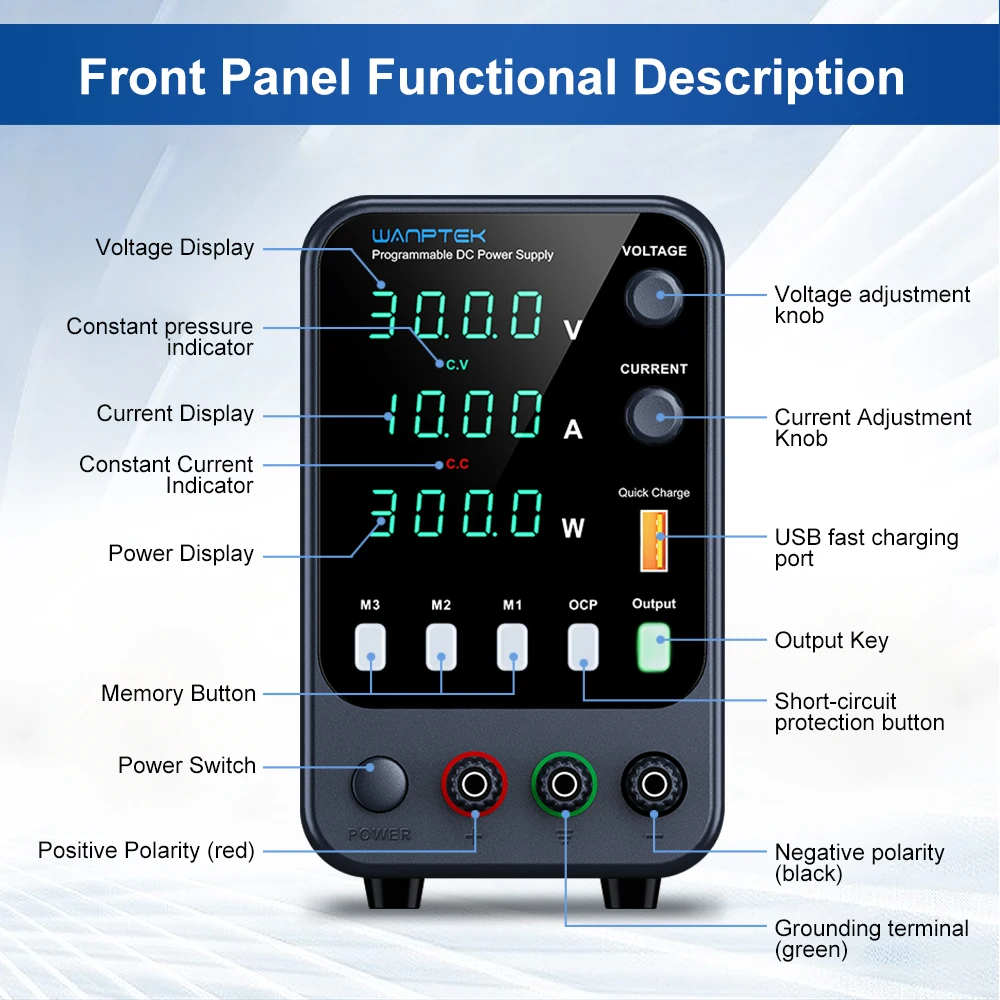

3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.

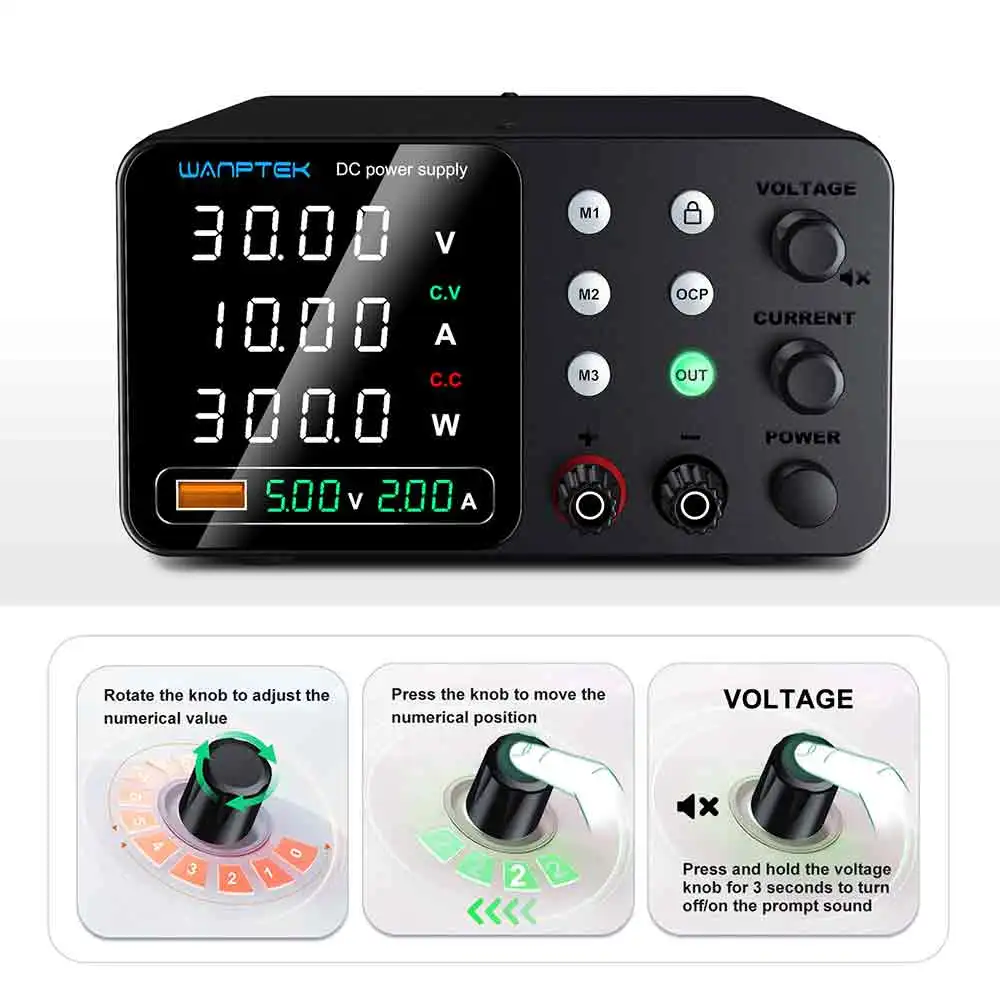

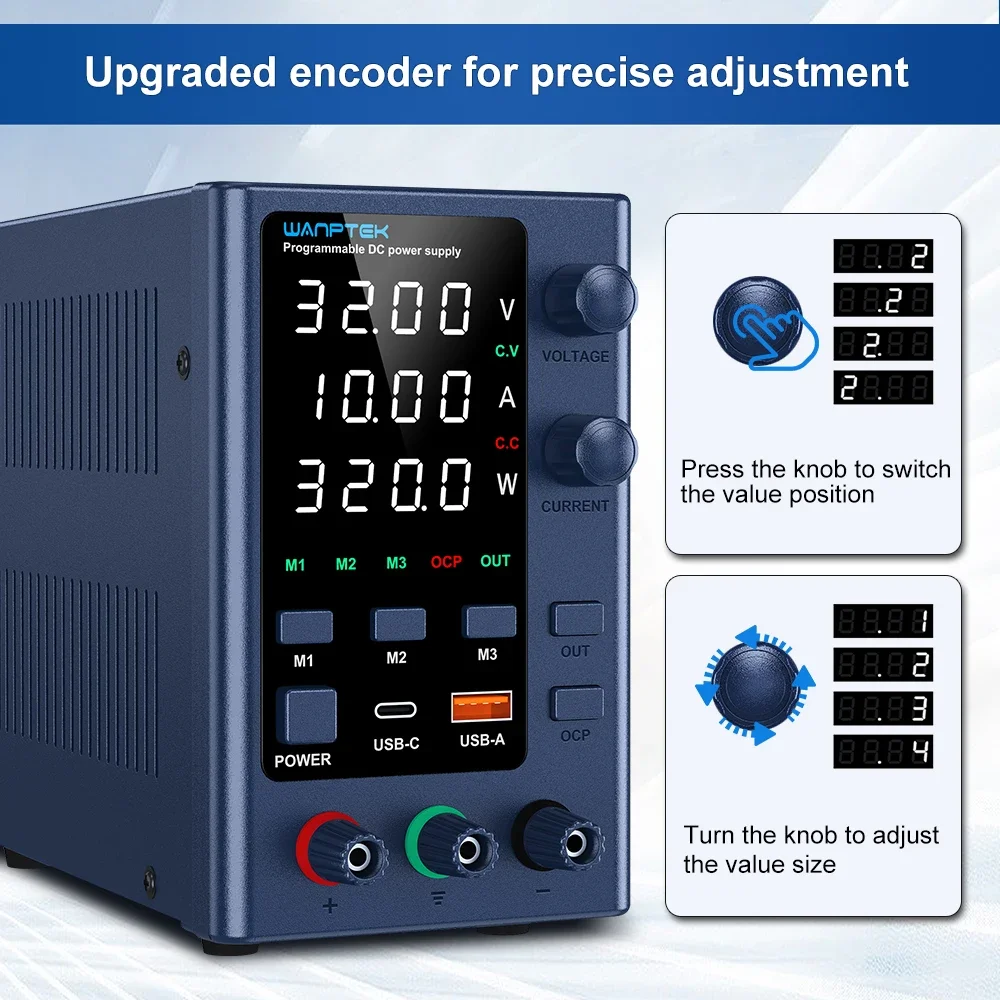

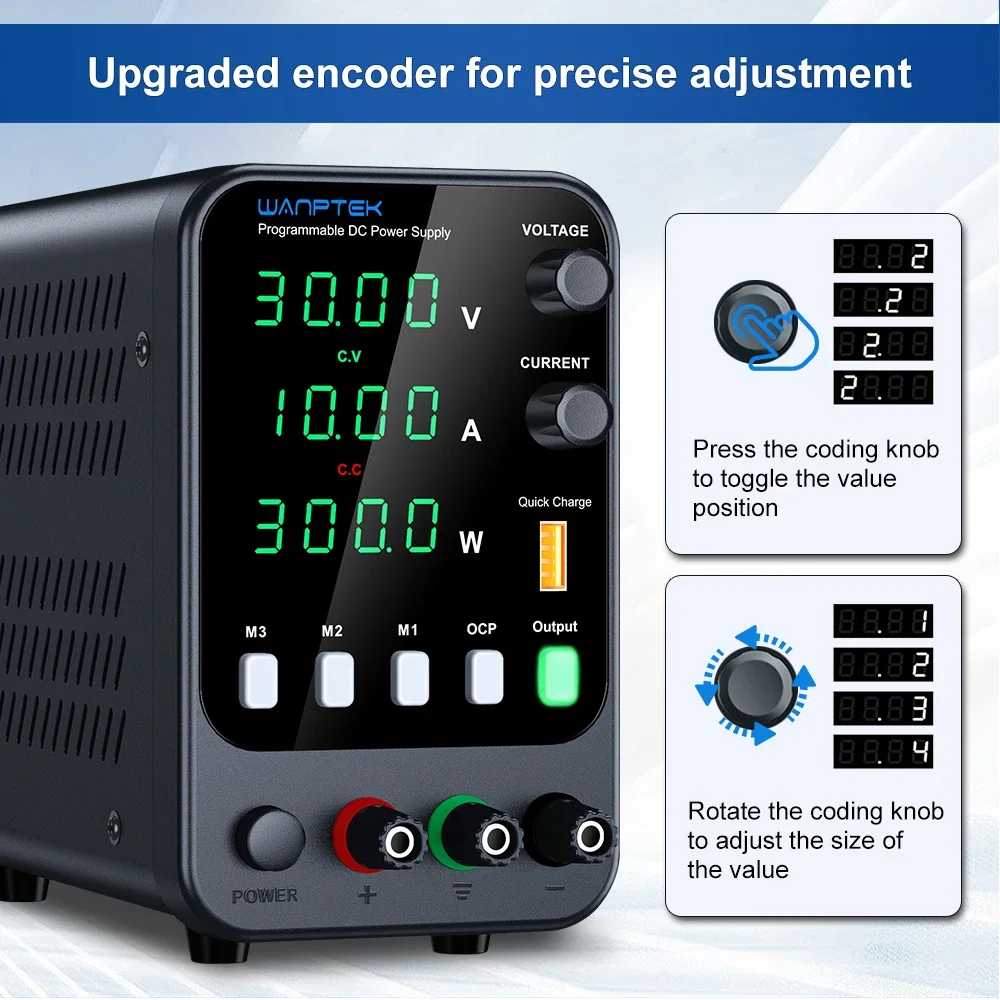

4.Adjustable Output Voltage & Current: Encoder adjustment

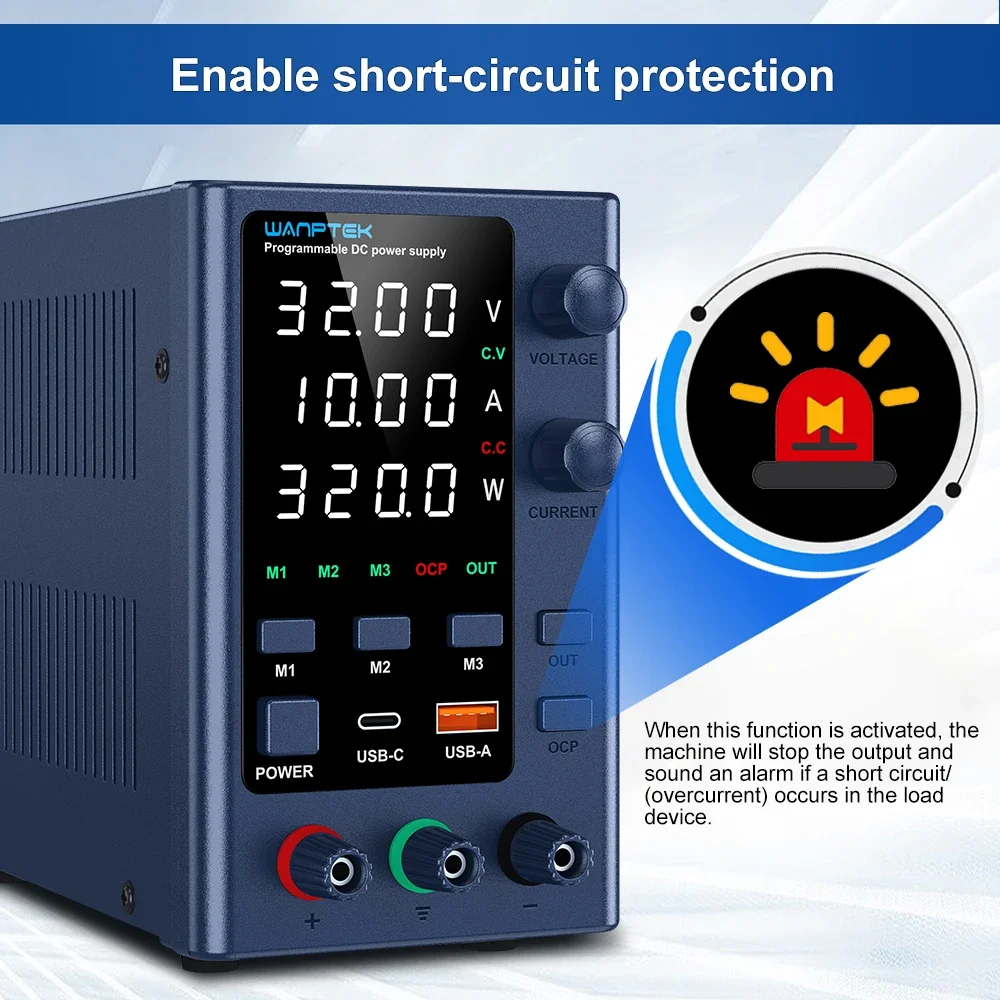

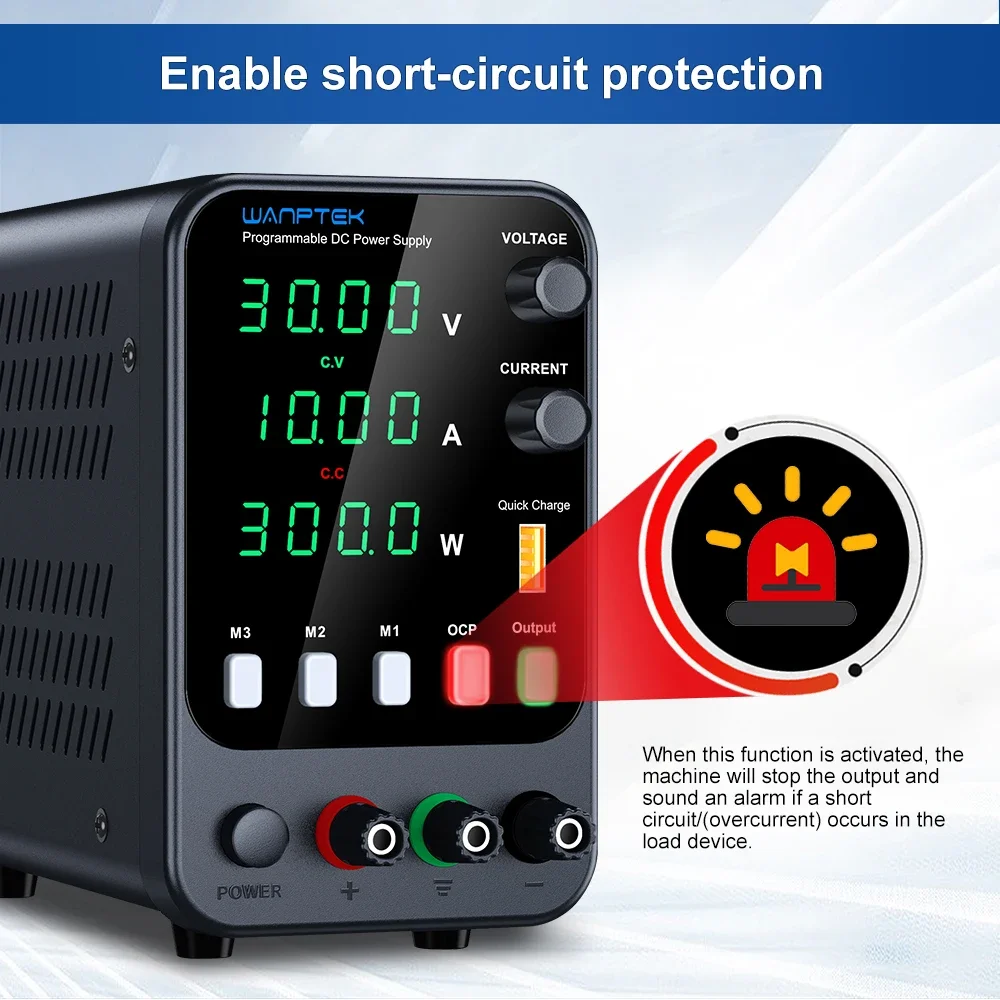

5.OCP short circuit protection function, short circuit stops output.
6.OUT output switch, one key output/off.

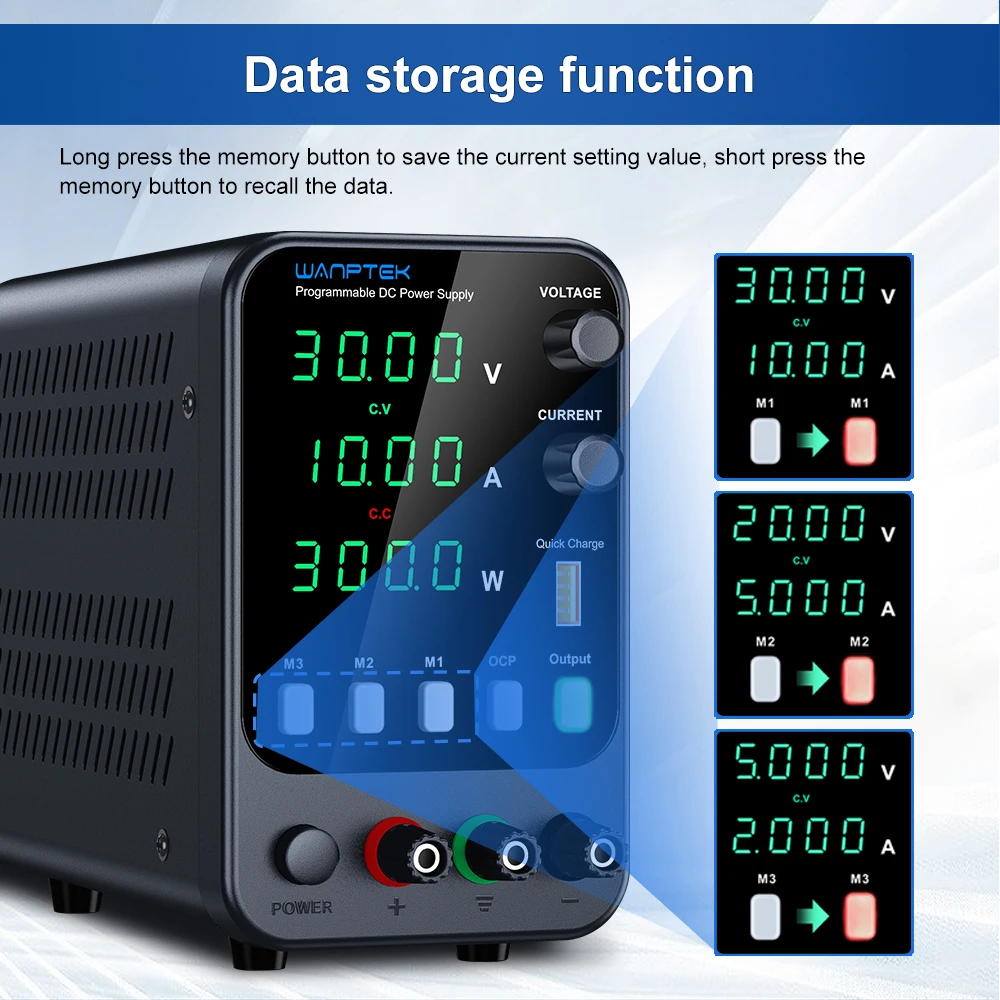

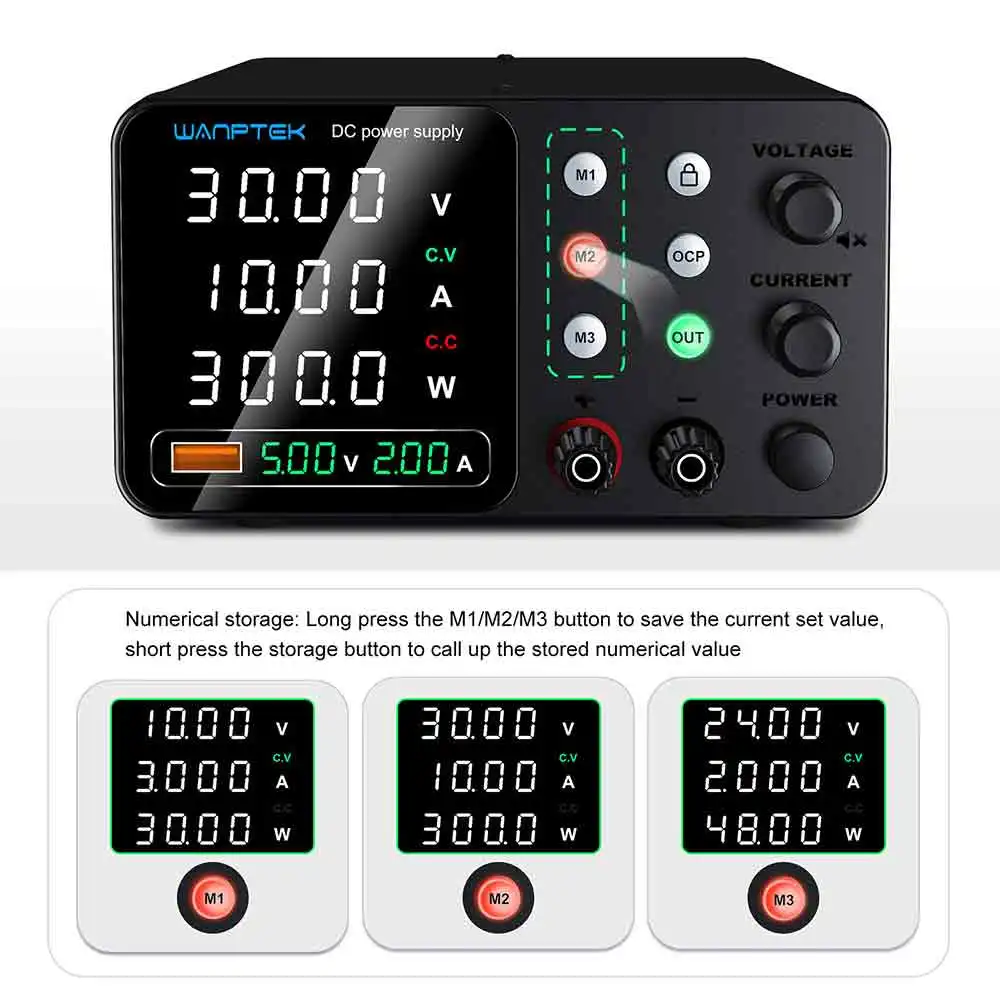

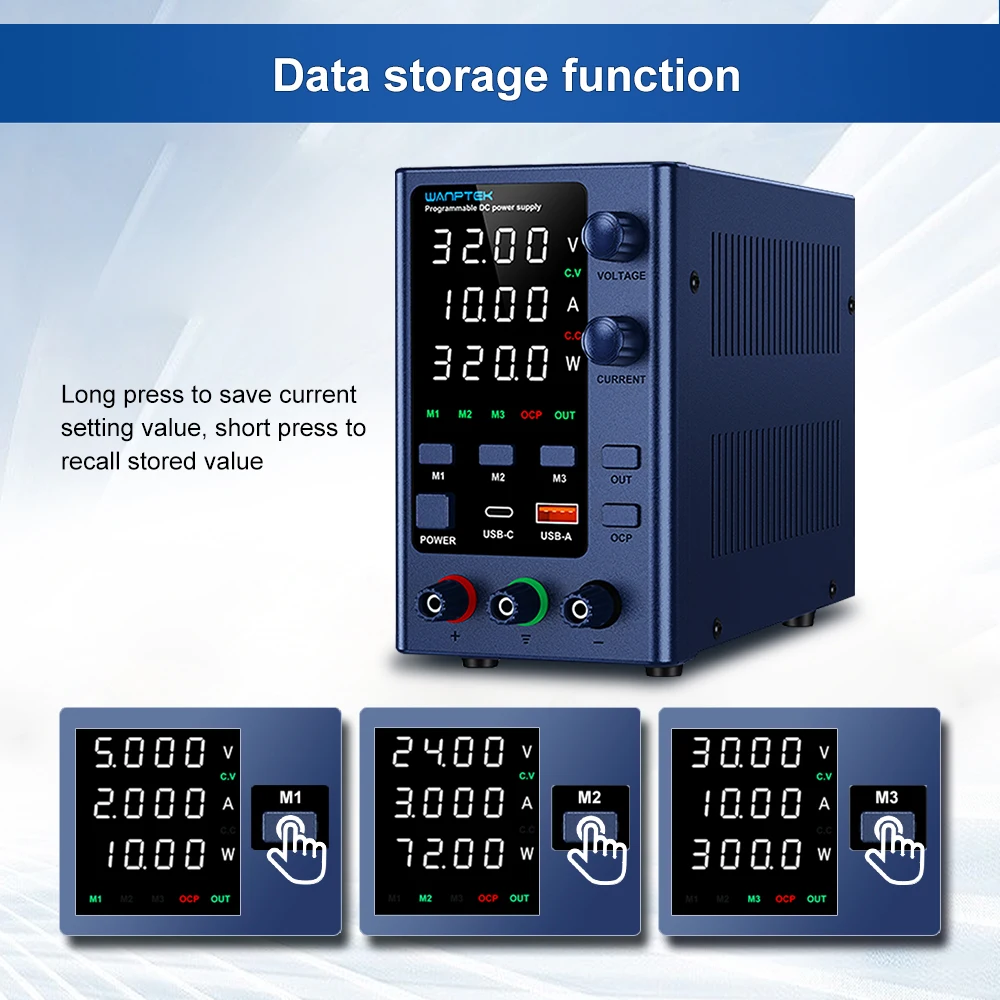

7.Three sets of data storage functions for easy and quick access.
9..it has over voltage protection(OVP), over current protection(OCP), over temperature protection

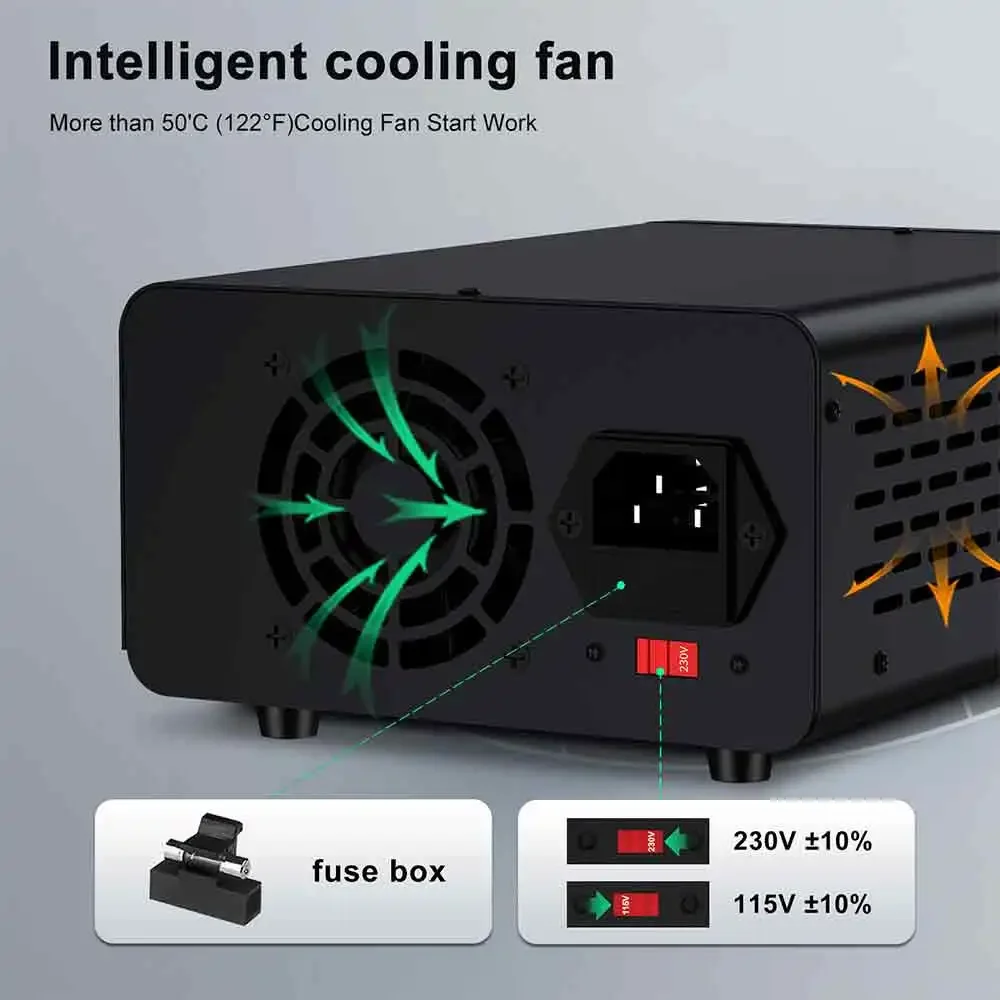

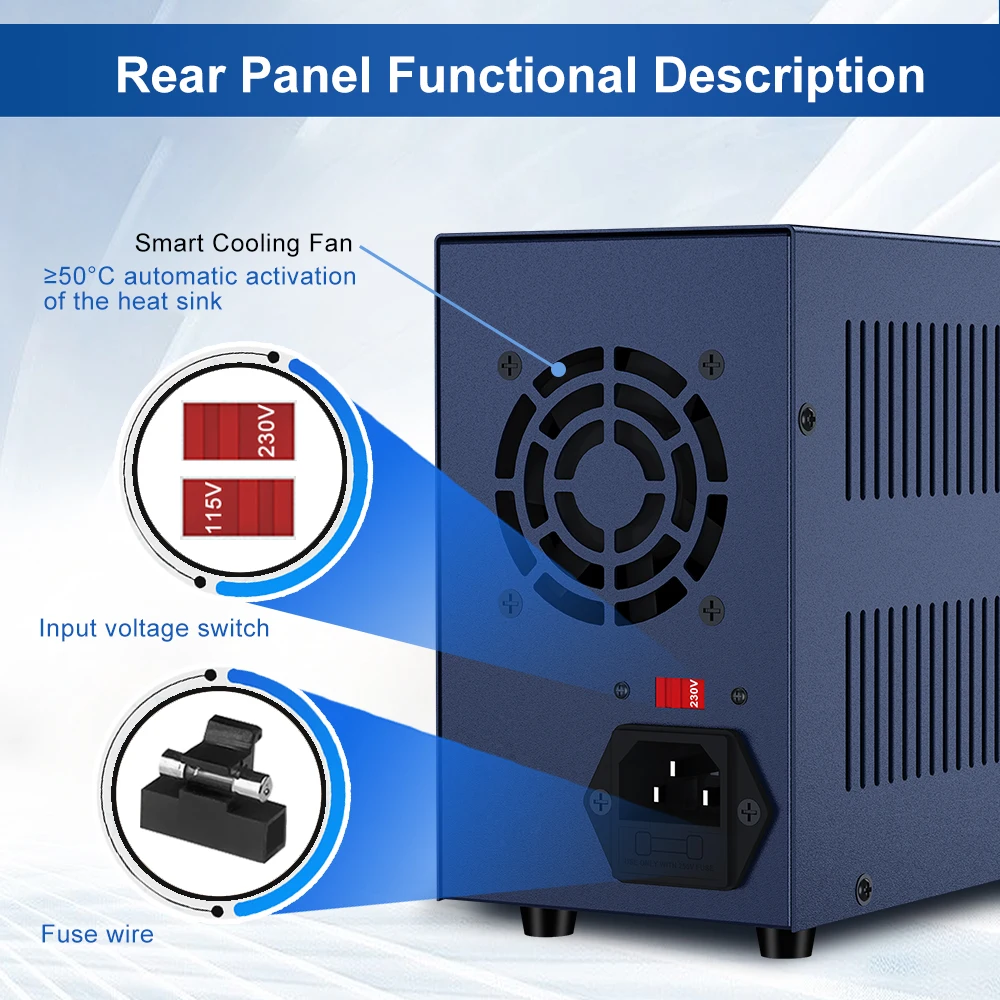

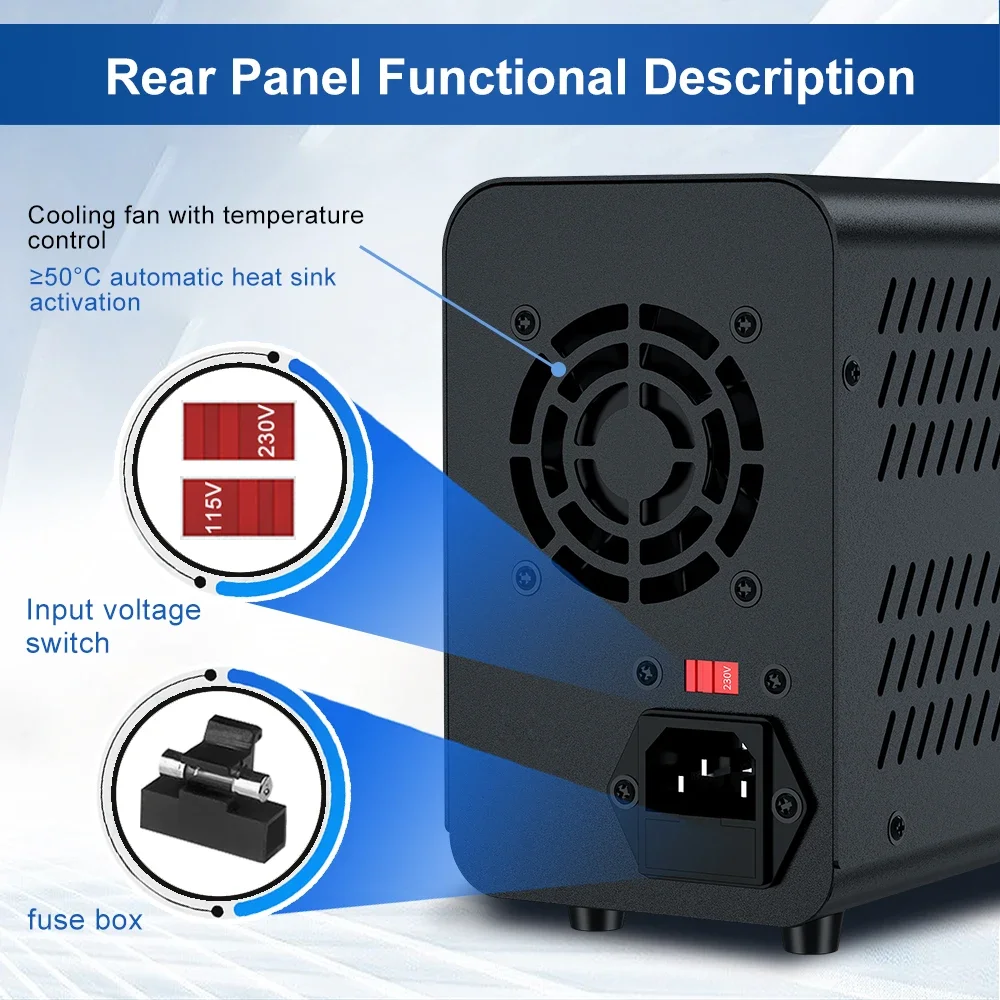

10.Temperature controlled fan cooling, low noise, long life.
11.Dual voltage input and convenient choice.
12.Key locking function, one click locking to prevent accidental operation（only TPS-C series）
13.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
14.Output current ranges from 0 to rating current with continuous adjustment
input voltage：AC 230V/115V±10%；50Hz/60Hz | |
Working temperature：0℃～40℃;relative humidity:<80%RH | |
Storage temperature：-10℃～70℃;relative humidity:<70%RH | |
Constant voltage CV | |
Voltage stability：0.1%±3mV |
|
Load stability： 0.2%±3mV | |
Ripple voltage：≤0.5% Vp-p | |
0 to rated voltage continuously adjustable | |
constant current CC | |
Current stability：0.1%±3mA |
|
Load stability： 0.2%±3mA | |
Ripple current：≤0.5% Vp-p | |
Recovery time：≤500μS | |
Temperature coefficient：≤100ppm/℃ | |
0 to rated current continuously adjustable | |
display | |
LED digit display |
|

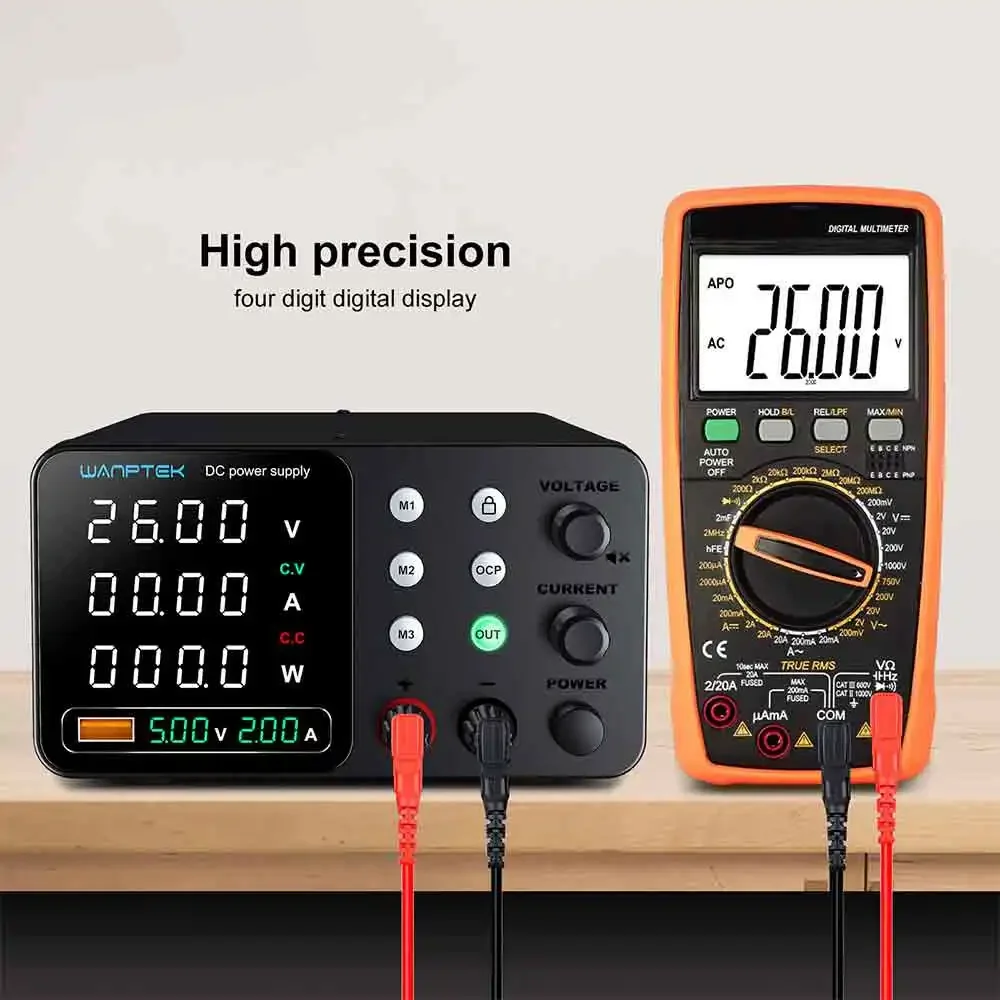

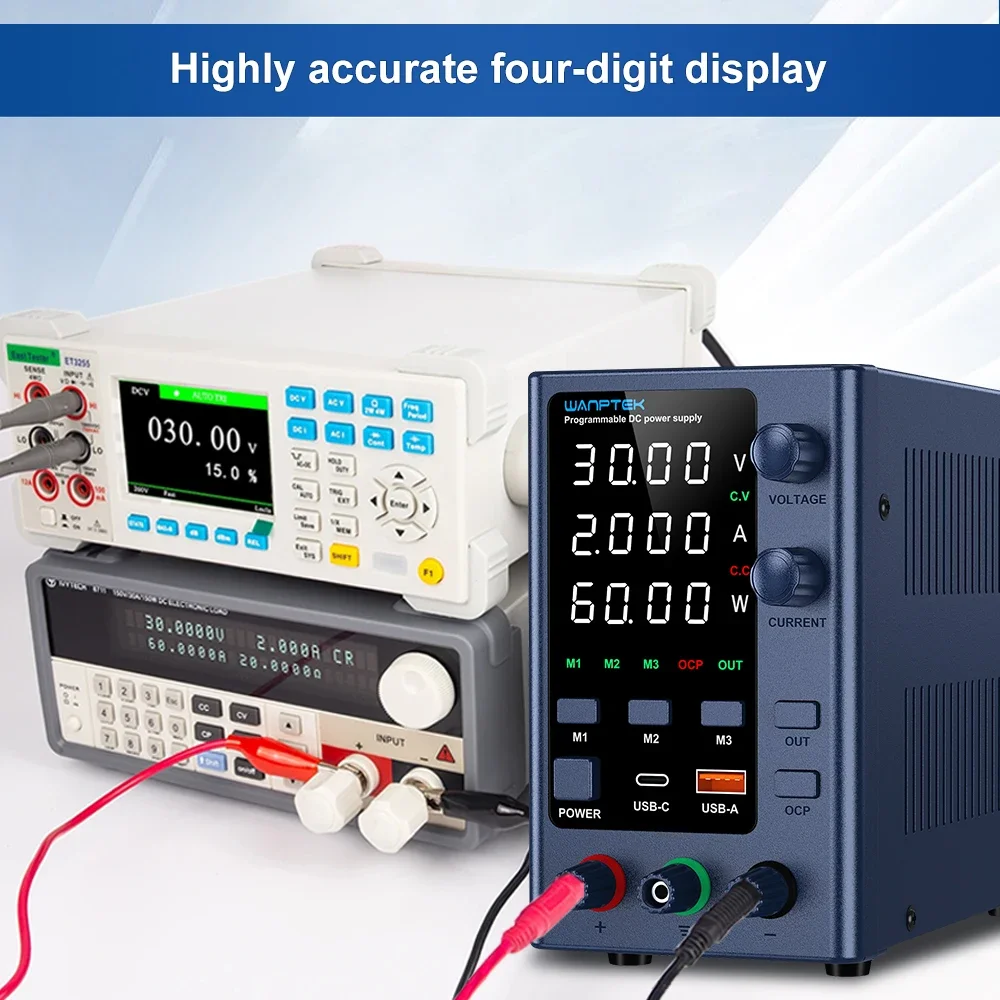

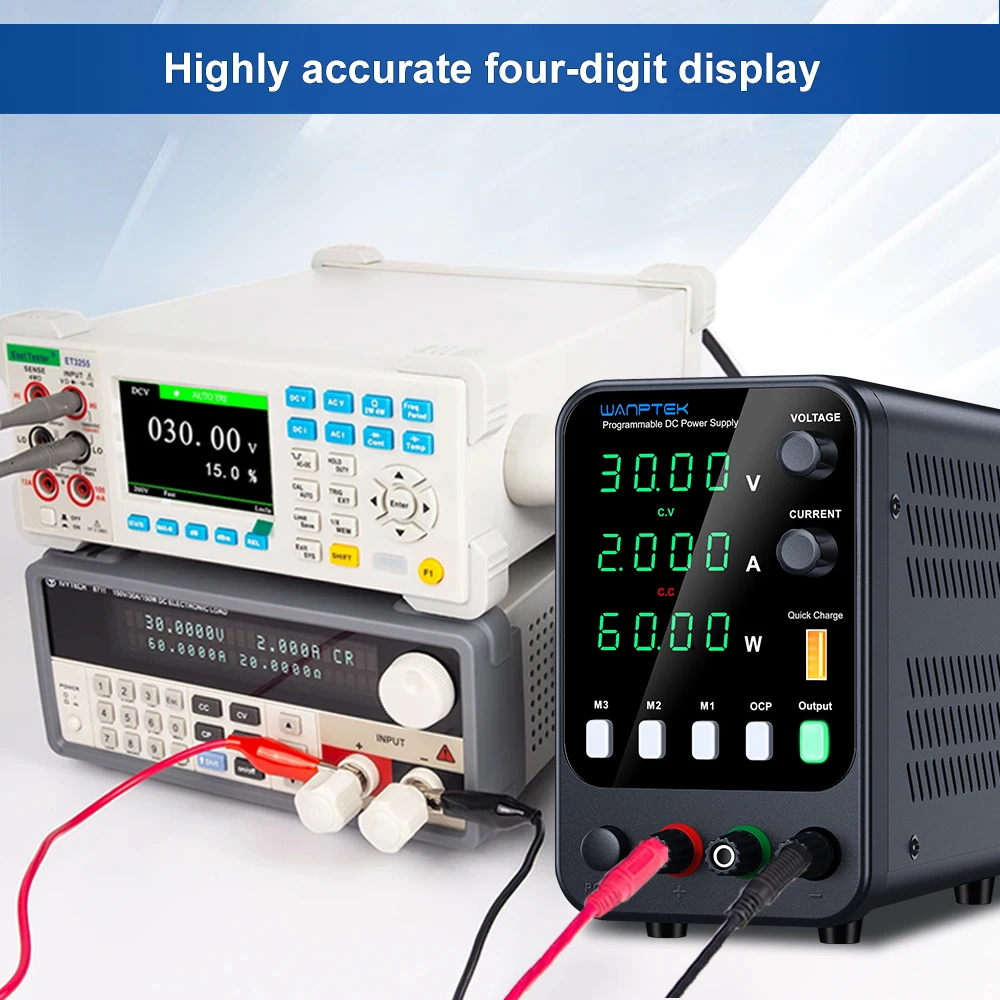

Display accuracy：0.5%±digits | |
Display resolution： voltage 0.01V， current 0.001A | |
2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery.(Include car battery)
5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use
6. All other occasions requiring DC power supply.
【CE & FCC Certification, Multiple Protection, Various Application】Lab power supplies have passed CE & FCC Certification. DC power supply has multiple protections: overvoltage protection, overcurrent protection, overheating protection, over power protection, short circuit protection, leakage protection. DC power supply is suitable for LiFePO4 battery charging, arduino project, laboratories, schools, electronic maintenance , electrolysis, electroplating, lamp test, aging test, DIY, etc.
1x DC power supply
1x power cord (EU,US types of plug selection)
1x Test line（gift）
1x Instructions
