SPECIFICATIONS



AC input voltage range: 90~140Vac



Battery: 48V lithium-ion&lead-acid battery and user-define

Brand Name: PowMr

Certification: CE,RoHS,pse

Communication: RS485/CAN/USB/Dry contact

Feature: 2 MPPT Tracker, Max 200A Chargin current

Is Smart Device: Yes

Model Number: POW-SunSmart 10K

Output Current: MPPT 200A

Output Frequency: 50/60Hz

Output Power: 1 - 200 KW

Output Type: Multiple

Output type: Single-phase or split-phase

PV input voltage range: 125~500Vdc

Size: 620x445x130mm

Type: DC/AC Inverter

Vlotage: 120/240V AC output

Waveform: Pure Sine Wave inverter

Weight: 26KG

is_customized: Yes





PowMr Split Phase MPPT Solar Inverter 10KW Rated Power 120/240VAC Output 48V Lith Battery Dual MPPT Tracker 200A Charger



Introduction:

POW-SunSmart 10K is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility charging and energy storage, AC sine wave output. It adopts DSP control and features high response speed, reliability, and industrial standard through an advanced control algorithm.



Feature:

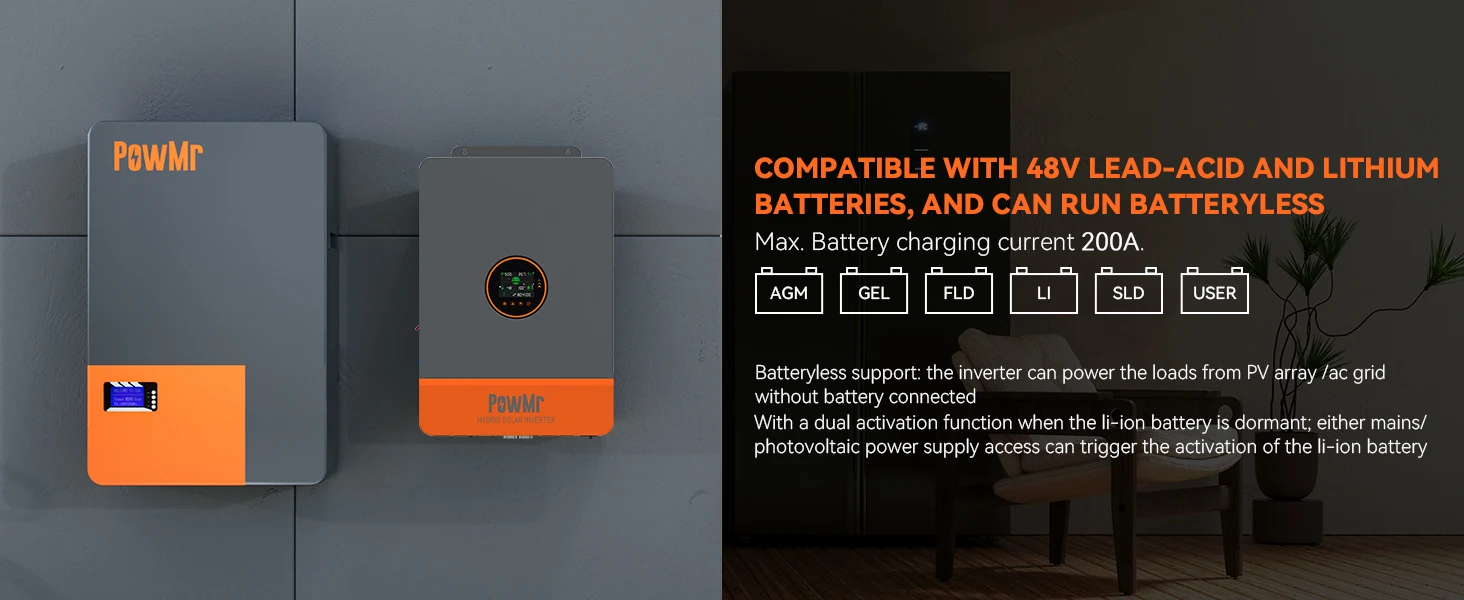

⚫ Supports lead acid battery and li-ion battery connections.

⚫ With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power
supply access can trigger the activation of the li-ion battery.

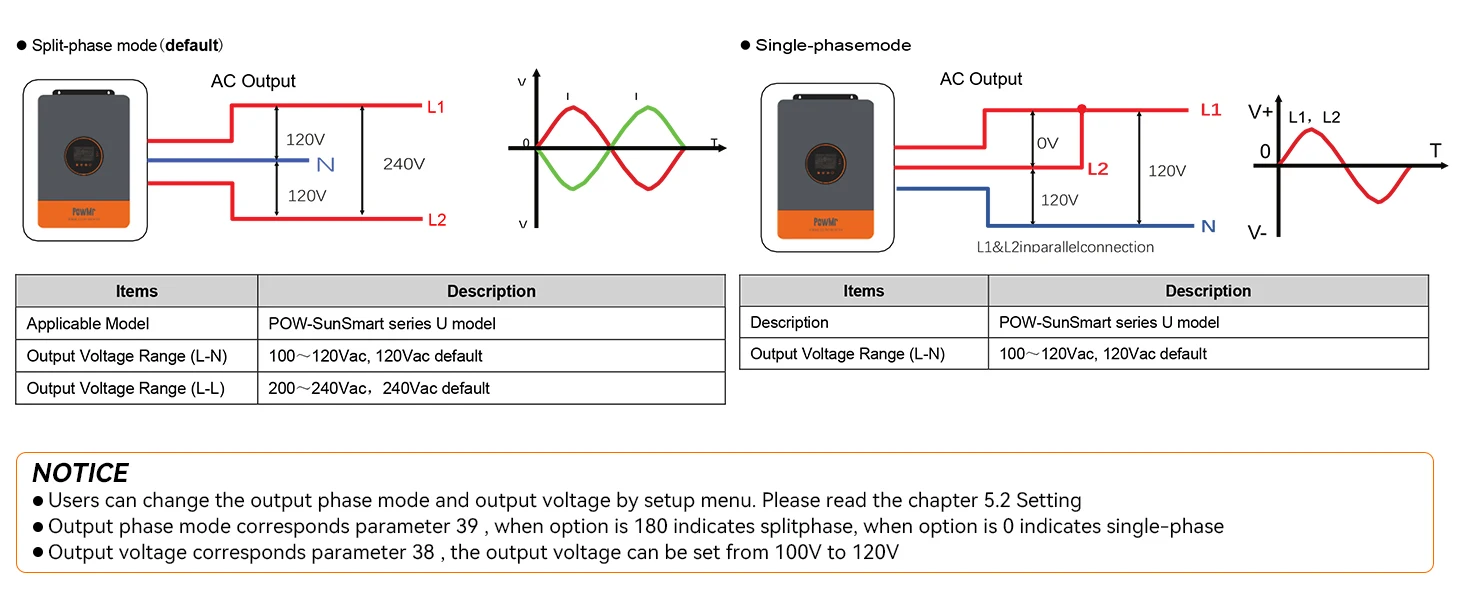

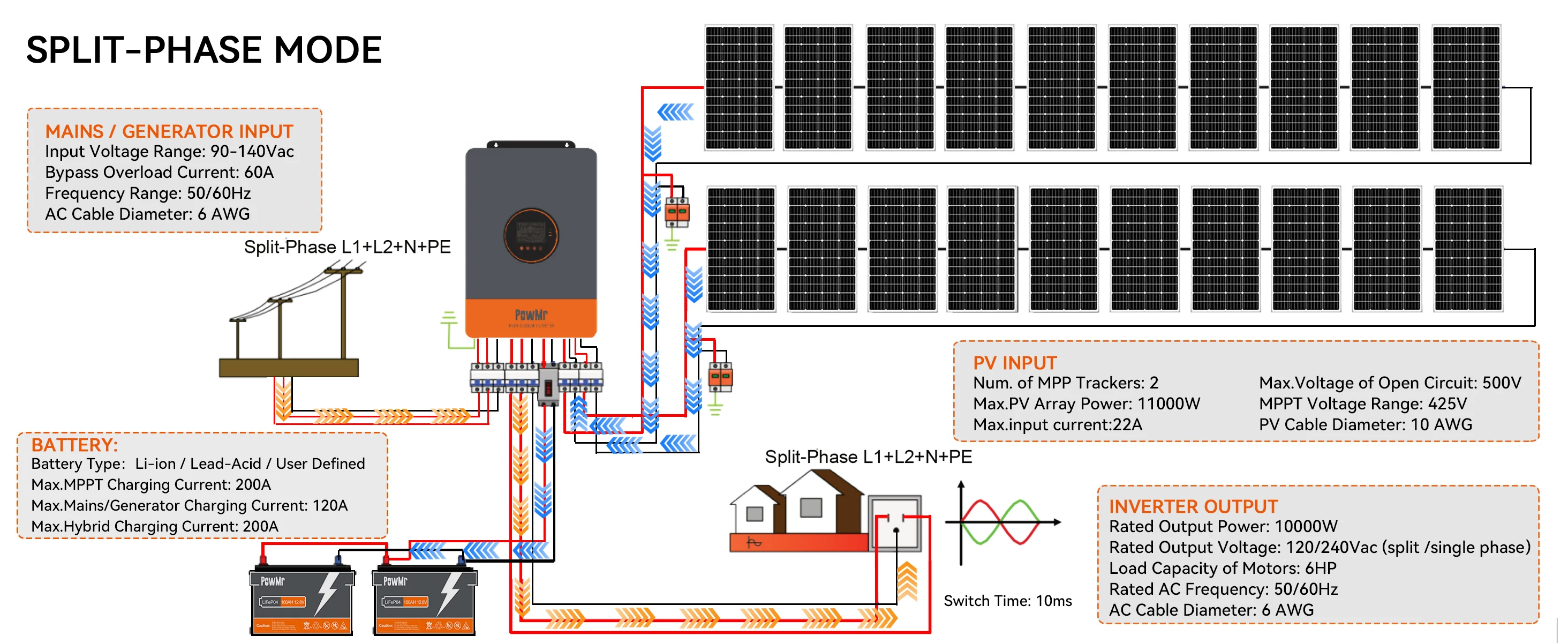

⚫ Support split-phase and single-phase pure sine wave output.

⚫ Supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.

⚫ Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.

⚫ Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.

⚫ 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.

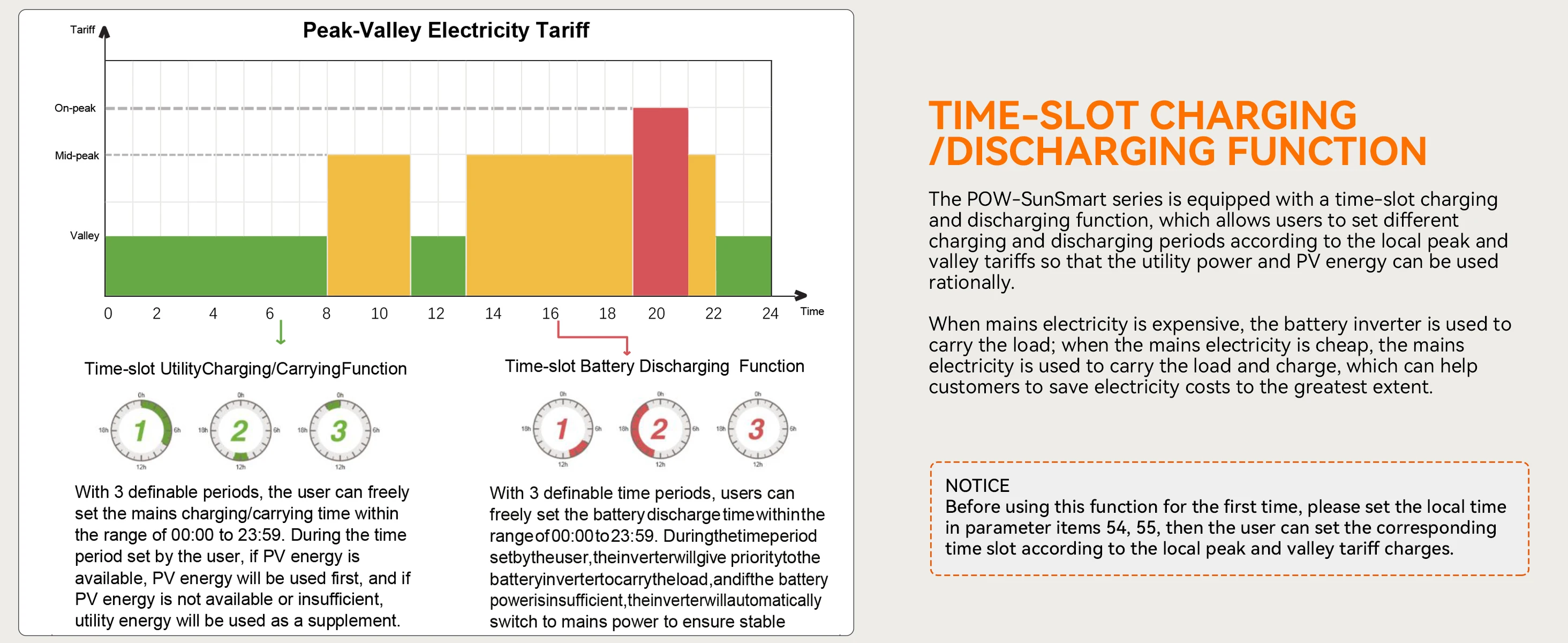

⚫ With the time-slot charging and discharging setting function, you can set the time period for cutting in/out of mains charging and switch the time period between battery discharging and mains bypass power supply mode.

⚫ Energy saving mode function to reduce no-load energy losses.

⚫ With two output modes of utility bypass and inverter output, with uninterrupted power supply function.

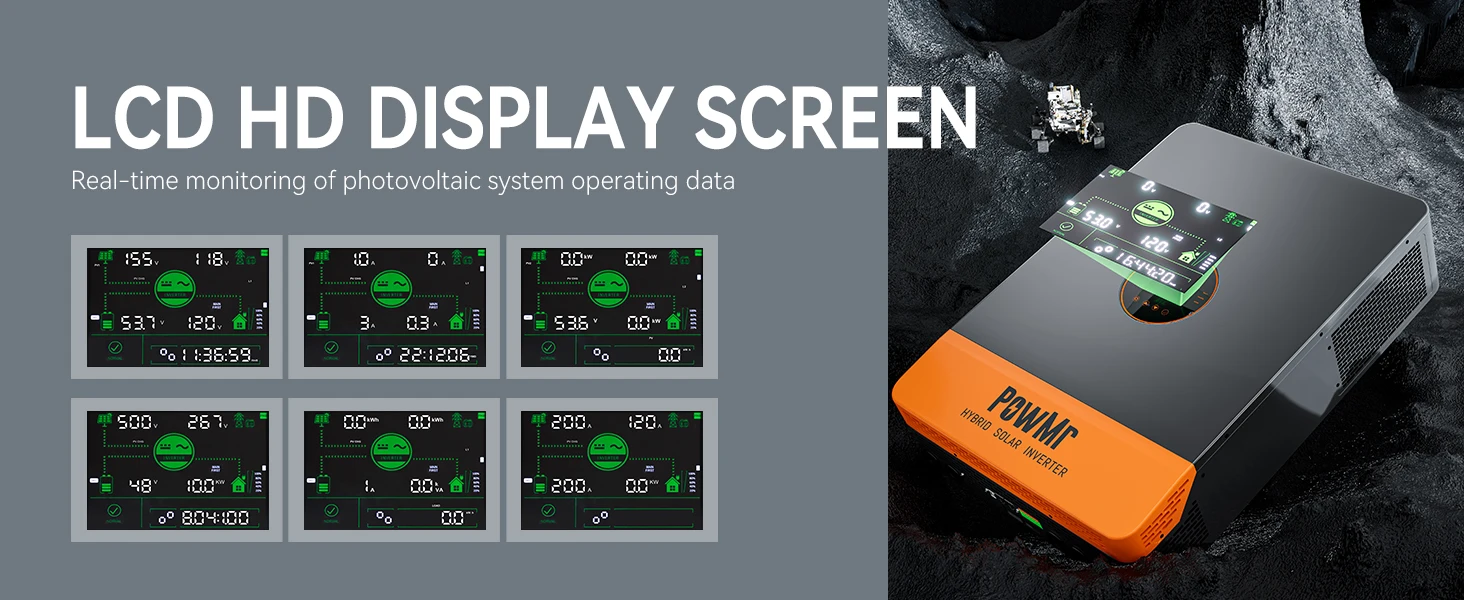

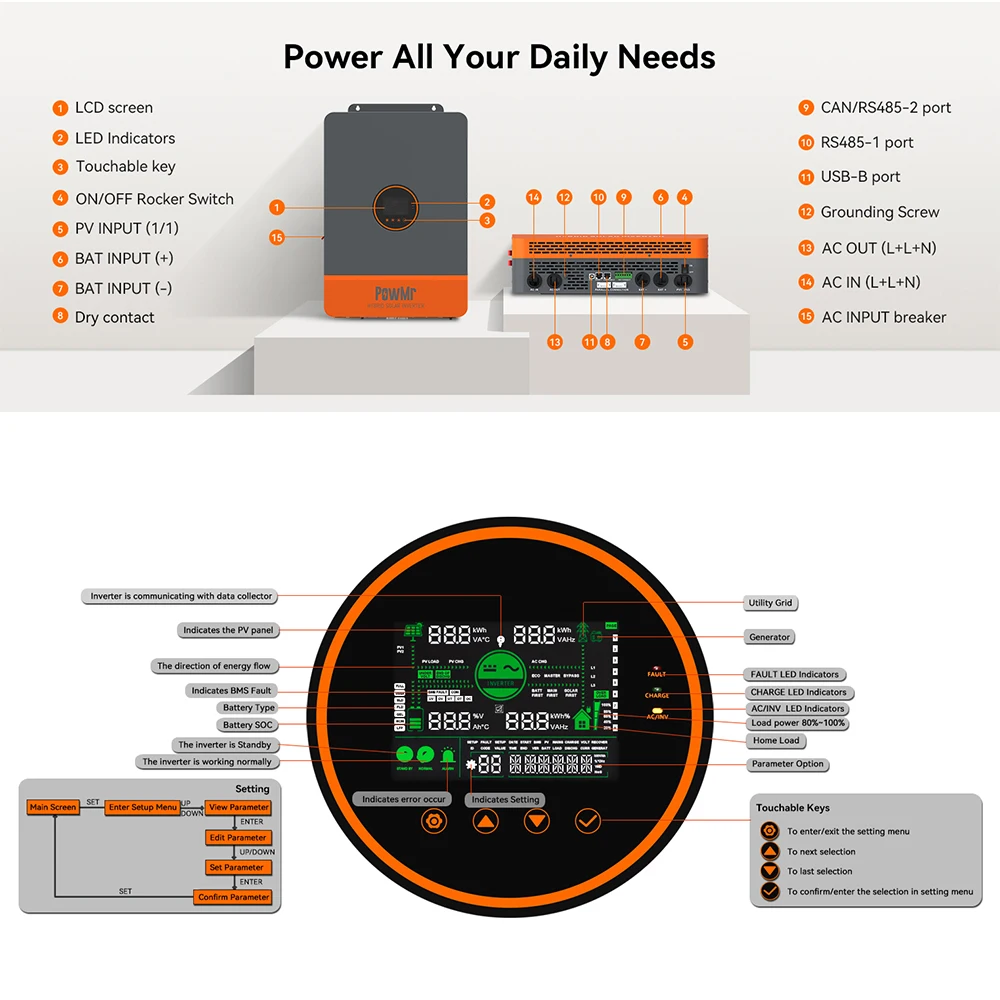

⚫ LCD large screen dynamic flow diagram design, easy to understand the system data and operation status.

⚫ 360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.

⚫ Support CAN, USB, and RS485 communication.

Specification:

MODEL	POW-SunSmart10K	CAN BE SET
INVERTER OUTPUT
Rated Output Power	10000W
Max.Peak Power	20000W
Rated Output Voltage	120/240Vac（splitphase/single phase）	Yes
Load Capacity of Motors	6HP
Rated AC Frequency	50/60Hz	Yes
Waveform	Pure Sine Wave
Switch Time	10ms（typical）
Parallel Capacity	/
Overload	After triggering the overload protection the inverter will resume output after 3 minutes, 5 consecutive overloads will switch off the output until the inverter is restarted. (102%<load<110%) ±10%: error and output shutdown after 5min; (110% < load < 125%) ±10%: error and output shutdown after 10s. Load > 125% ±10%: error reported and output switched off after 5s. BATTERY
BATTERY
Battery Type	Li-ion/ Lead-Acid/User Defined	Yes
Rated Battery Voltage	48Vdc
Voltage Range	40-60Vdc	Yes
Max.MPPT Charging Current	200A	Yes
Max.Mains/Generator Charging Current	120A	Yes
Max.Hybrid Charging Current	200A	Yes
PV INPUT
Quatity of MPPT Trackers	2
Max.PV Array Power	11000W
Max.Input Current	22/22A
Max.Voltage of Open Circuit	500Vdc
MPPT Voltage Range	125-425Vdc
MAINS/ GENERA TORINPUT
Input Voltage Range	90-140Vac
Frequency Range	50/60Hz
Bypass Overload Current	63A
EFFICIENCY
MPPT Tracking Efficiency	99.90%
Max.Battery Inverter Efficiency	92%
GENERAL
Dimensions	620*445*130mm(2*1.5*0.4ft)
Weight	27kg(59.5lb)
Protection Degree	IP20，Indoor Only
Operating Temperature Range	-10~55℃,>45℃derated
	(14~131℉，>113℉derated)
Noise	<60dB
Cooling Method	Internal Fan
Warranty	2 Years
COMMUNICATION
Embedded Interfaces	RS485/CAN/USB/ Dry contact	Yes
ExternalModules(Optional)	Wi-Fi /GPRS	Yes
CERTIFICATION
Safety	IEC62109-1, IEC62109-2, UL1741
EMC	EN61000-6-1,EN6 1000-6-3, FCC15 classB
RoHS	Yes

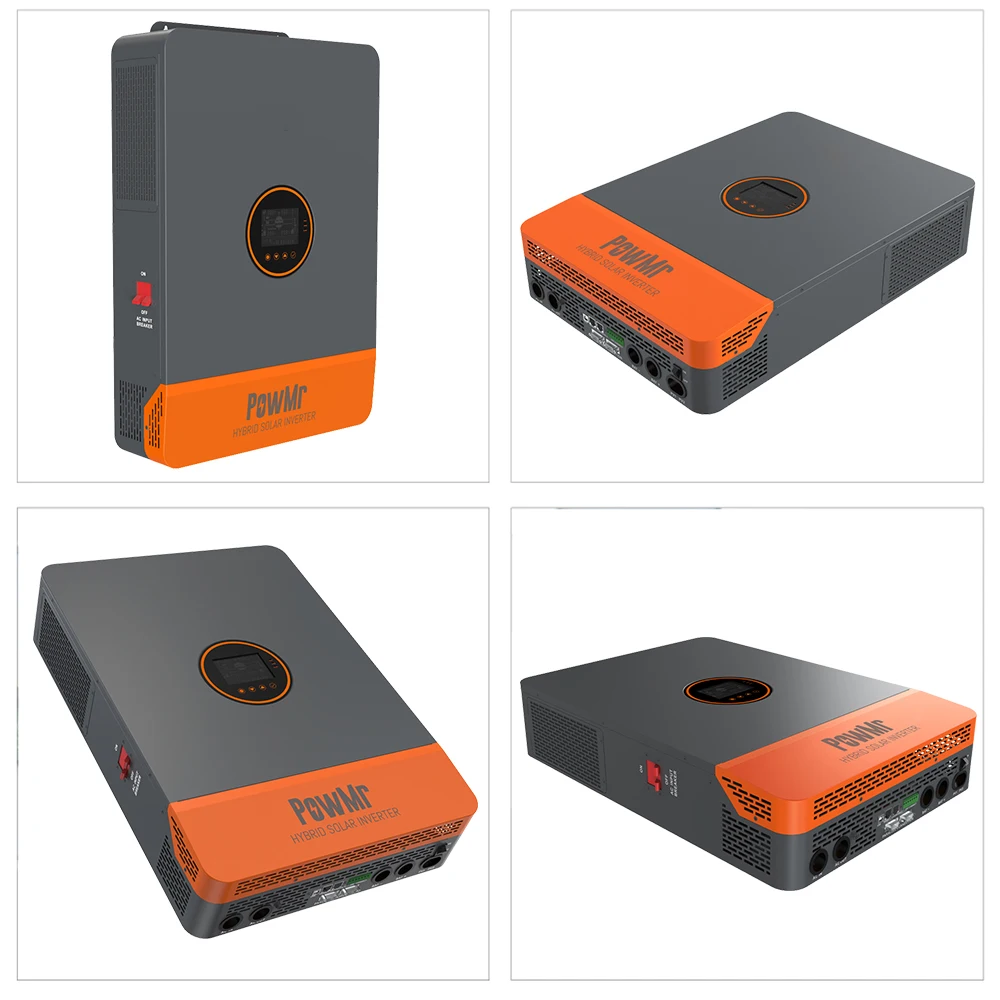

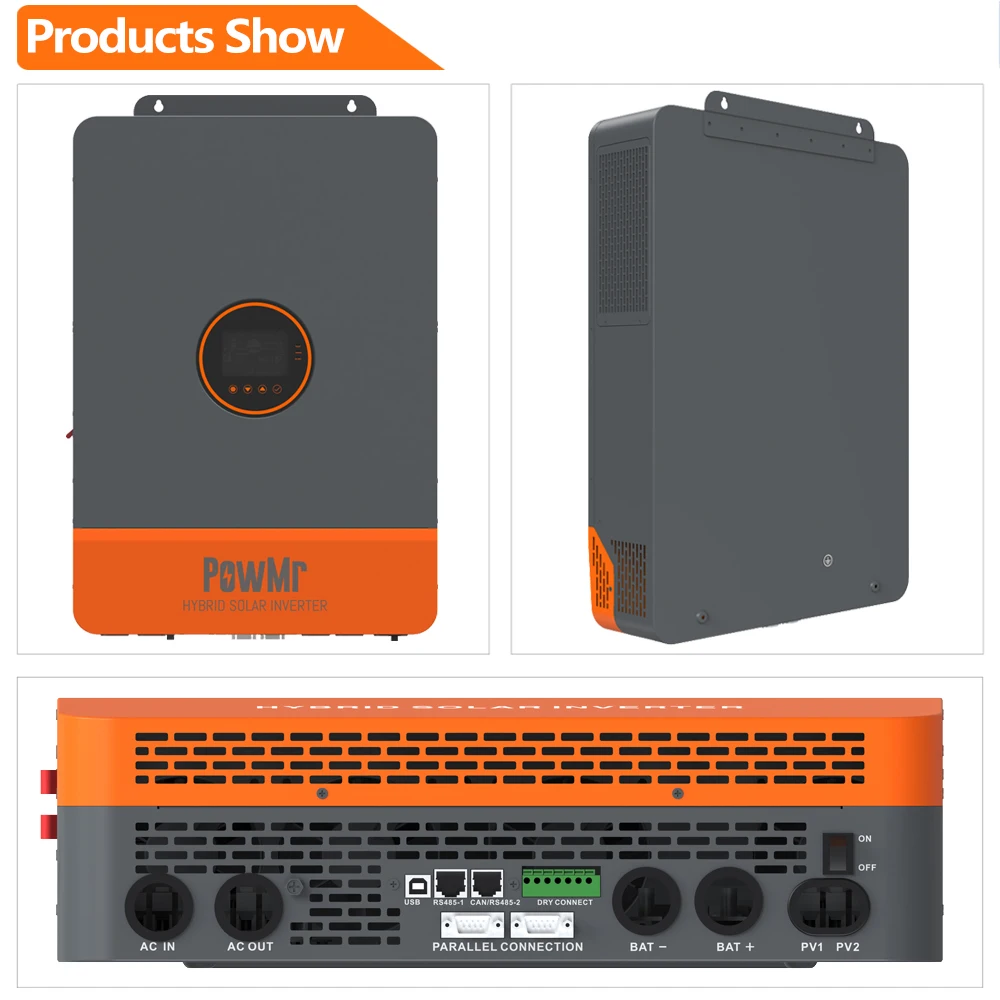

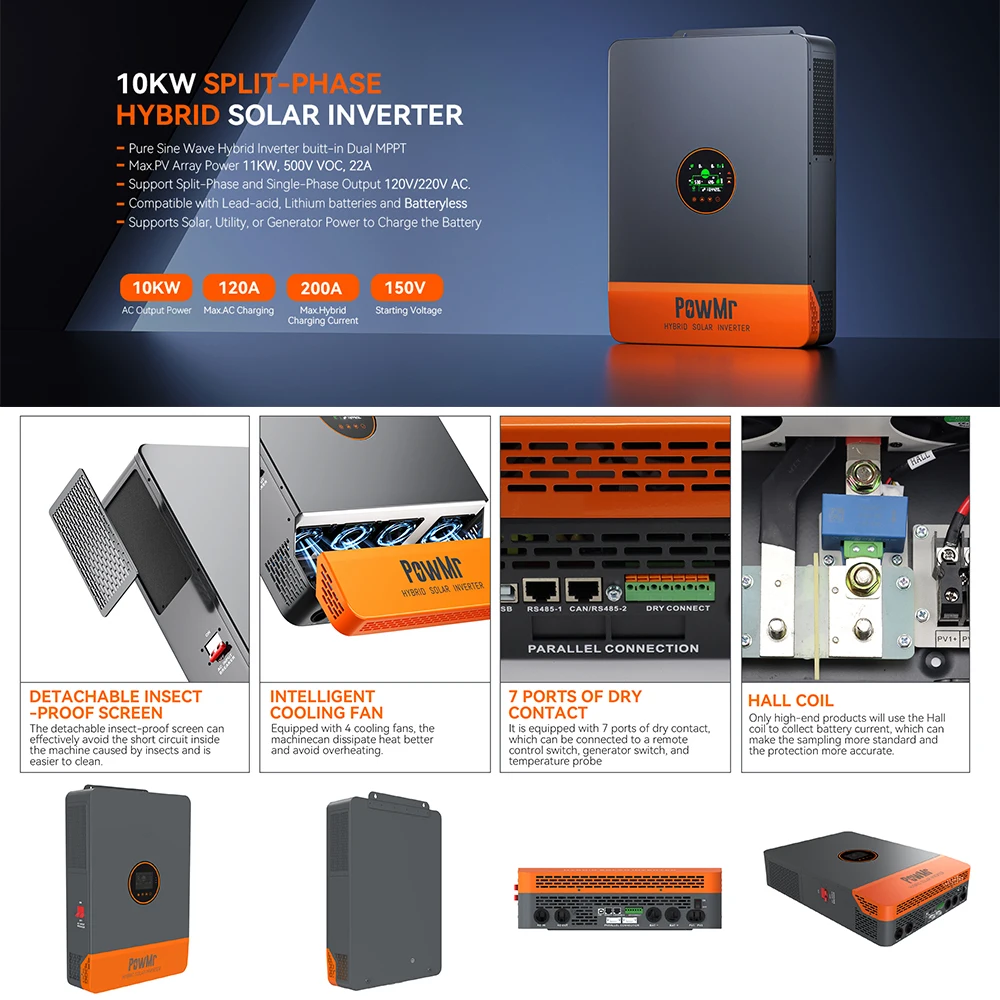

Product Overview:
