SPECIFICATIONS

Brand Name: PowMr

Feature 1: Dual MPPT

Feature 2: 10kw hybrid inversor

Feature 3: Split-phase solar inverter

Max.PV input Voltage: 500Vdc

Model Number: POW 10KP

Output Frequency: 50Hz/60Hz

Rated Output Power: 10000W

Rated Output Voltage: 120/240Vac

Type: DC/AC Inverters

Warranty: 18 Month

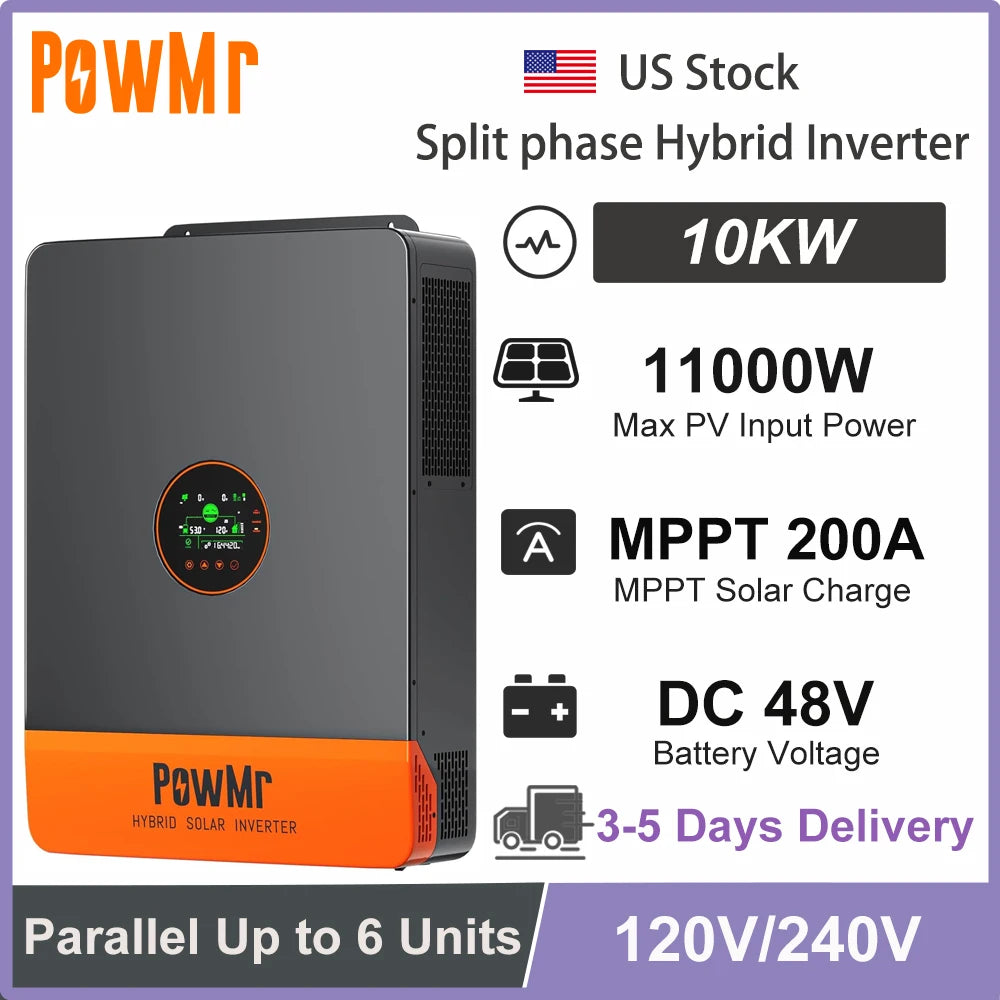

PowMr Split-Phase 48V 10KW Hybrid Inverter 120/240V AC With 200A MPPT Solar Controller Max PV 500V Fit Lithium Battery Home Use US MX Stock

1.【MULTIFUNCTIONAL SOLAR INVERTER】UL1741 Standard POW-SunSmart split-phase solar inverter is a new type of solar energy storage inverter control inverter integrating solar energy storage & utility charging and energy storage, AC sine wave output. Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high-power modules. Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions.

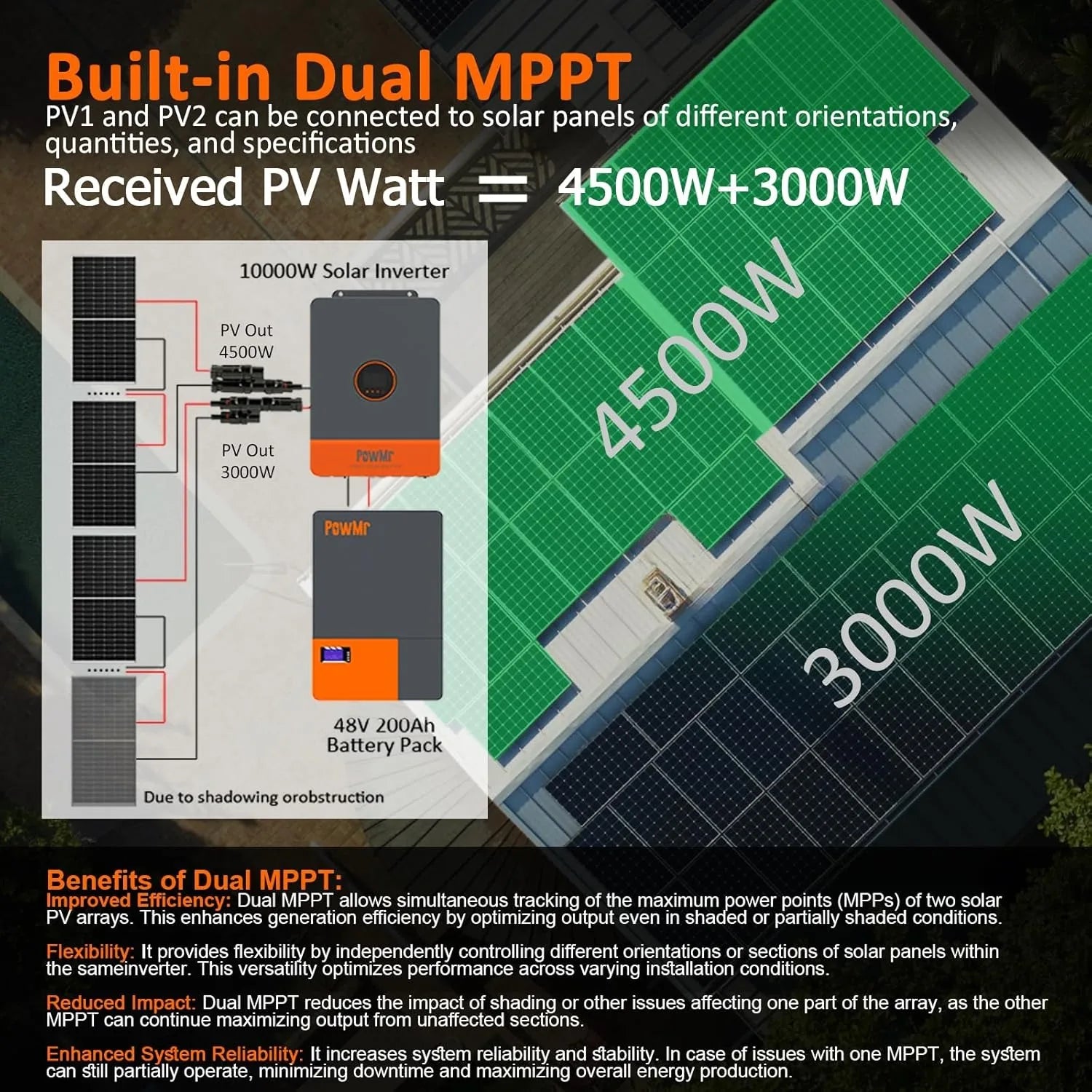

2.【DUAL MPPT】Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high-power modules. Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions. Support split-phase and single-phase pure sine wave output.

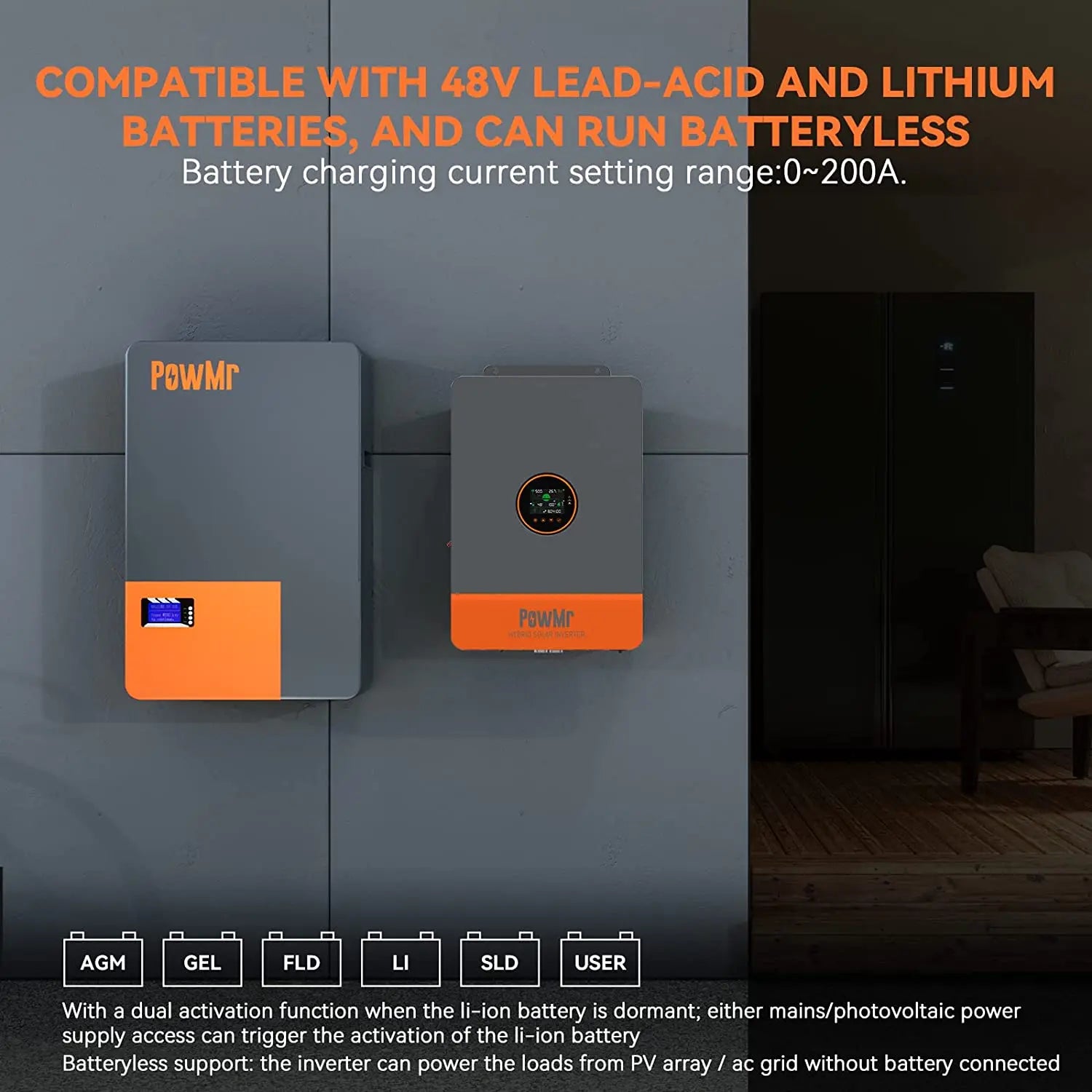

3.【COMPATIBLE WITH VARIOUS BATTERIES】10000W 48V split phase power inverter is compatible with AGM, Gel, Lead acid, Lithium-ion, and LiFePO4 batteries, and support batteryless. Supports solar, utility, or generator power to charge the battery. It can flexibly schedule the Inverter charging and discharging time. With a dual activation function when the li-ion battery is dormant; either mains / photovoltaic power supply access can trigger the activation of the Li-ion battery.

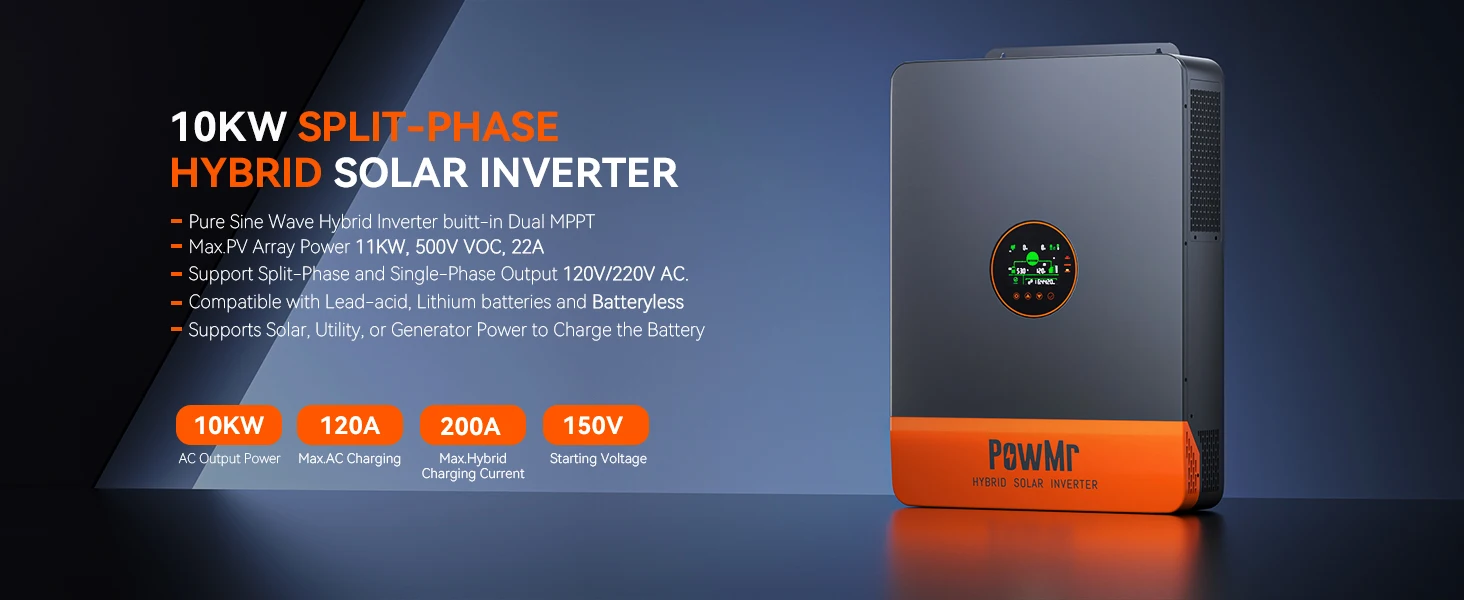

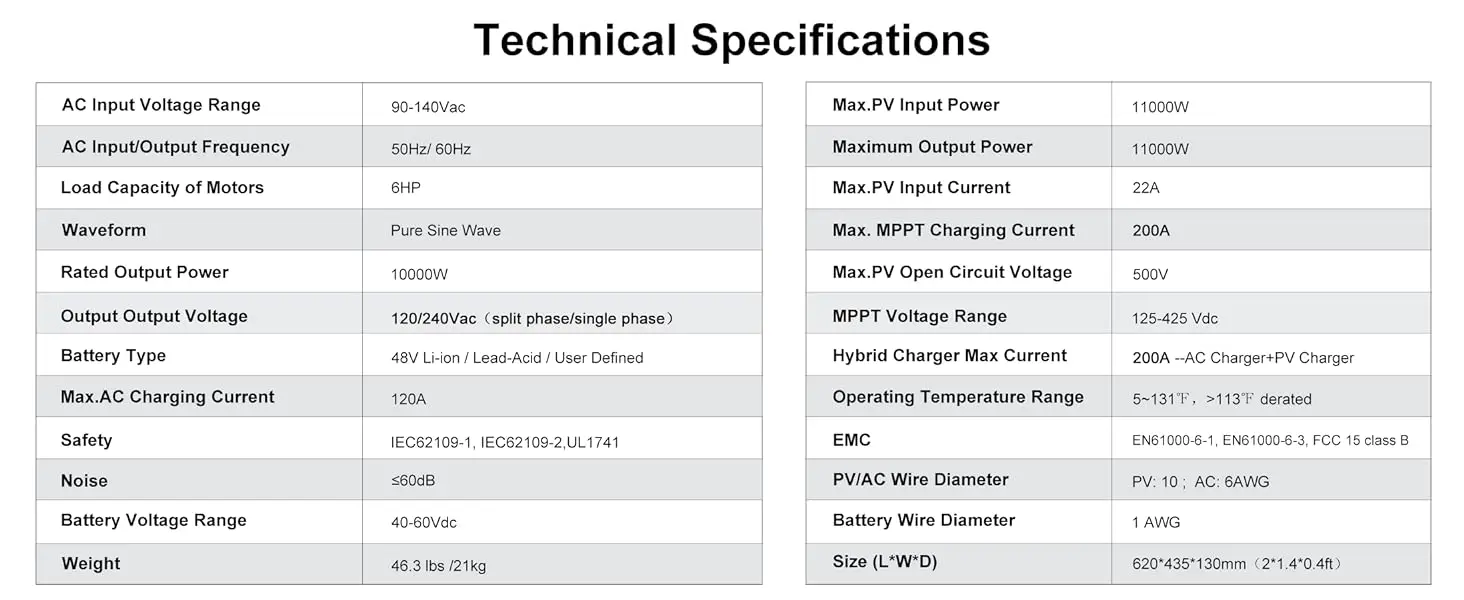

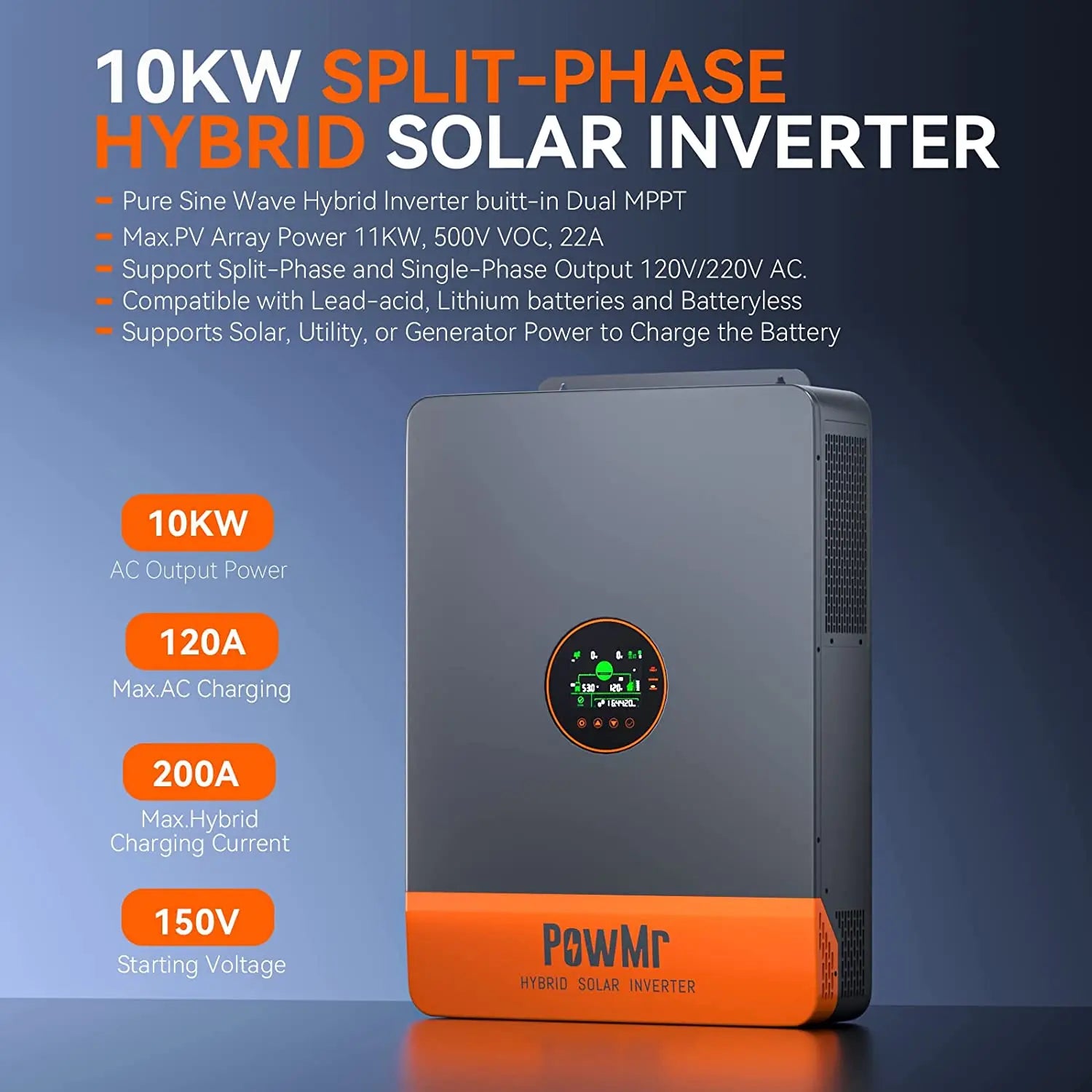

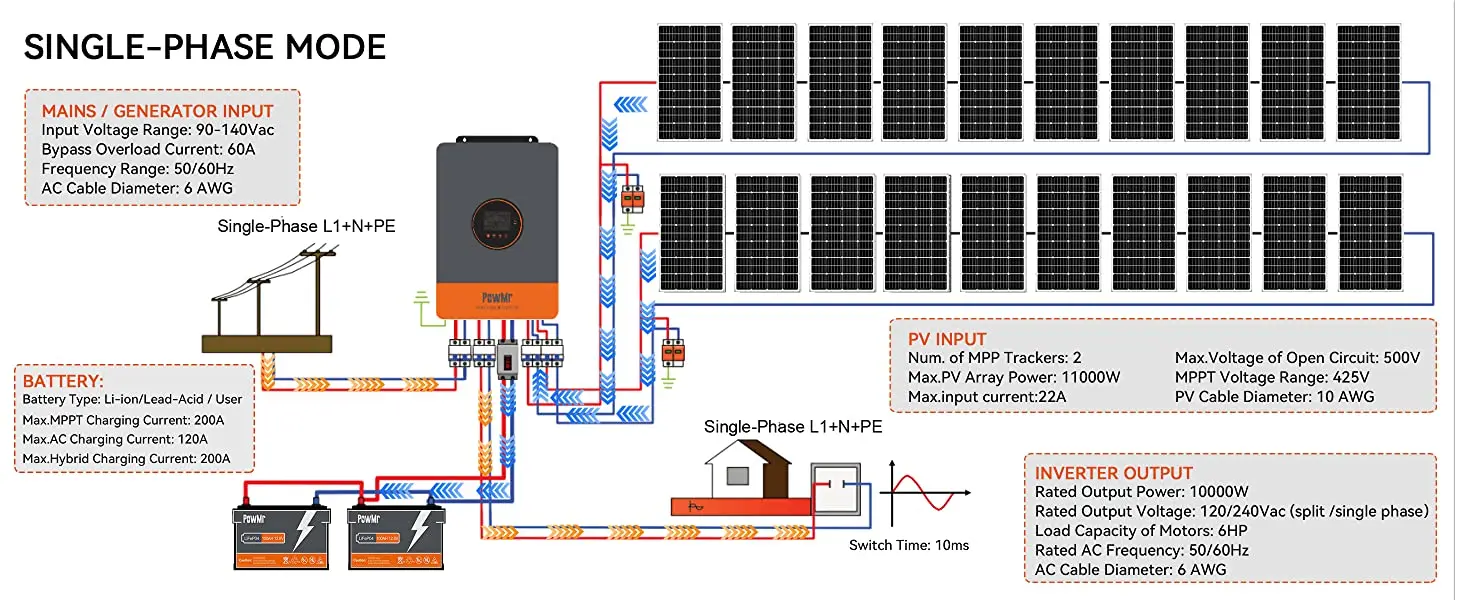

4.【TECHNICAL SPECIFICATIONS】Hybrid Solar Inverter 48V built-in 200A MPPT controller and 10KW Pure sine wave inverter. Rated Output Power: 10000W continues (Surge 20000W), Rated Output Voltage: 120/240Vac (split phase/single phase), Switch Time: 10ms, Max.PV Input Power: 11KW(5500*2), Max.PV input Voltage: 500Vdc, Max.PV input current: 22A, Starting voltage more than 150V, PV Wire:10AWG. Support CAN, USB, and RS485 communication.

5.【CHARGING MODES AND TIME CAN BE SET】Pure Sine Wave Solar Inverter has 4 charging modes that are optional, i.e. solar only, mains priority, solar priority, and mixed mains/PV charging; and with two output modes of utility bypass and inverter output, with uninterrupted power supply function.

Note: Products with electrical plugs are designed for use in the US MX. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.
