SPECIFICATIONS



Brand Name: ACEBEI-POWER



Capacity: 10 - 20Ah

Certification: CE,RoHS

Fits for ebikes 1: LAFLY X-3/X-5

Fits for ebikes 2: JINGHMA R7 R5

Fits for ebikes 3: samebike LO26/20LVXD30

Fits for ebikes 4: Engwe ep-2

Fits for ebikes 5: FIIDO M1 Pro/M21

Fits for ebikes 6: GORTAT R8

Fits for ebikes 7: Shengmilo MX-01/MX01

Type: Lithium Battery

Voltage: 48v





Current link is item DCH-006 430mm Type Folding Electric Bicycle Battery

If need DCH-006 410mm type or others model DCH-009, DCH-003, DCH-014, DCH011, ALX-051 or other similar style batteries, please contact us.



Important Notice for DCH-006's lock design:

Function 1. Lock the battery inside the bike frame.

Function 2. The lock is also the battery's power (on/off) switch.

If with lock's function 2 (battery switch function), then : Before riding, please turn battery's key to the end to open battery's power on.

(with lock's function 2, then during riding, the key will be kept on battery and can't be moved away till you stop riding.)

If need with lock's function 1 and function 2 (battery switch function) both, please choose option "48V 10Ah.. With Switch" when place order;

If only need with lock's function 1 but no need function 2 (battery switch function), please choose option "48V 10Ah No Switch" when place order.

Whatever your old original battery with or without lock's function 2 (battery switch function), you can choose any of them, up to your prefer.





This Battery DCH-006 430mm type fit for below ebike perfectly!



48V 10.4Ah, 12Ah, 12.8Ah, 13.6Ah, 14Ah all fits for Samebike LO26, 20LVXD30, XWLX09, FIIDO M1 Pro, Fiido M21,Engwe ep-2 pro Engine pro, etc......



48V 12Ah, 12.8Ah, 14Ah fits for LAFLY X-3/X-5, X3, X5, Shengmilo MX-01/MX01, etc......





The Samebike, Mate bike, Engwe bike, LANKELEISI, rich bit, LAFLY, MYATU ect.. Many bicycles also will use this model or similar model battery on their different model bicycles.



So how to know whether this battery can install inside my bike?



1. Please measure your old battery's size firstly, if size is almost same, then check the apperance, charging port position,

If same as ours, then can install. (This currently link battery is DCH-006 430mm length)

2. Please make sure you order a same voltage's battery as your bike motor. please make sure your motor power watt is within our suggestion working motor watt range.

(If for bike 48V Motor, please choose 48V battery; if for 36v motor, please choose 36V battery)



If your old battery is not almost same dimension as our DCH-006 430mm, please consult with us to check other models.



If old battery is 48V 7.5Ah, 8.7Ah, 9.6Ah, 11.6Ah 12.5Ah, can I use with 48V 14Ah battery to replace it?

---Yes, Ah is just the capacity of the battery, have no other influence on using.

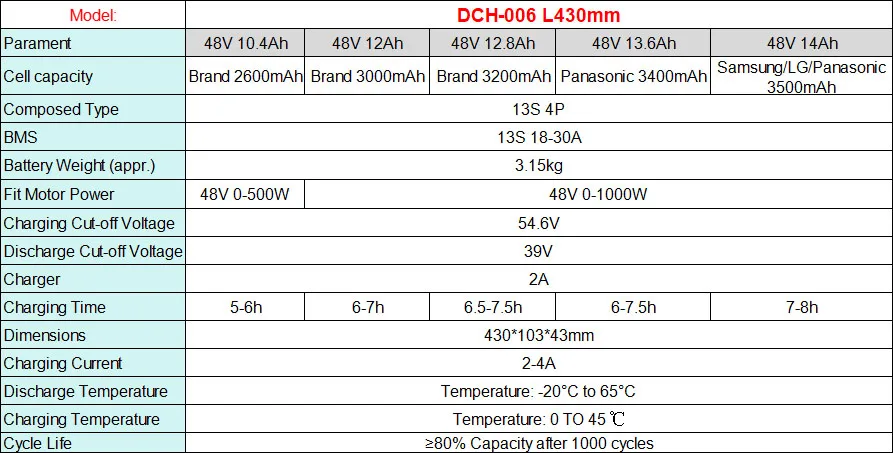

Battery Specification:



DCH-006 (430Type) 48V
Battery Parameter	48V 10.4Ah	48V 13.6Ah	48V 12Ah	48V 12.8Ah	48V 14Ah
Composed Type	13S 4P
Cells	Brand 2600mAh	Panasonic 3400mAh	Brand 3000mAh	Brand 3200mAh	Samsung/LG/Panasonic 3500mAh
Battery Weight(appr.)	3.15kg
Battery Size(appr.)	43*103*430mm
BMS	13S 18-30A
Fit for Motors	48V 10.4Ah, 48V 13.6Ah fits for: 48V 200w 250w 350w 48V 400w 450w 500w （48V 0-500W motor)		48V 12Ah, 48V 12.8Ah, 48V 14Ah fits for 48V 200w 250w 350w 500w 48V 750w 800w 1000w    (48V 0-1000W motor)
Charging Cut-off Voltage	54.6V
Discharge Cut-off Voltage	39V
Charger	2A
Charging Time	5-6h	6-7.5h	6-7h	6.5-7.5h	7-8h



Common parameters：

Discharge Temperature	-20~65°C
Charging Temperature	0~45°C
Cycle Life	80% Capacity after 800 cycles
Warranty	1 Year



Note:



If your ebike motor is 48V 750w 800w 1000w, please choose 48V 12Ah, 12.8Ah, 14Ah.



If your ebike motor is 48V 350w 500w, you can choose any of the 48V 10.4Ah, 13.6Ah, 12Ah, 12.8Ah, 14Ah.

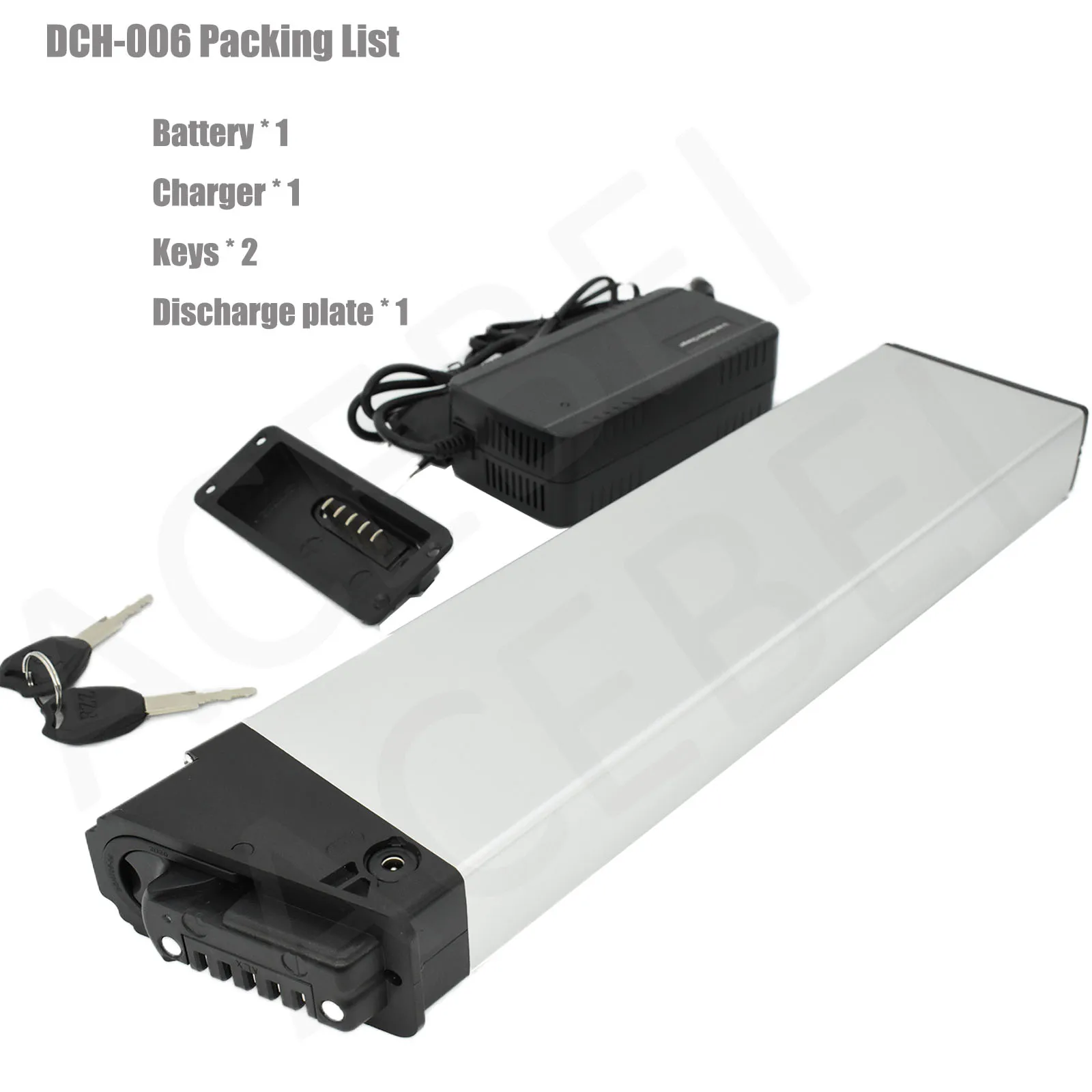

Packing List:

Battery * 1

Charger * 1

Keys * 2





Warranty



Product: Battery

12 Months Quality warranty 1. We provide 1 year warranty for all electric bike batteries. 2. Any battery with quality problem in one month we can return the money after you provide the proof. 3. After one month we can send BMS or cells to you for repair, or you can send it back local warehouse or us to repair as well. 4. All our electric bicycle batteries with high quality cells and BMS, made by skilled craftsmanship and they will be 100% strictly several times tested before shipping.

Condition The warranty is not valid if the battery is entered water, or damaged by man-made, or used over-power/ over-voltage, or if it is damaged due to incorrect operation, or if it's over-warranty time. Whenever has any problem (including above problem or over-warranty), you also can contact us to provide relative details and we will help or provide suggestion





FAQ

Q: What type of this electric bike battery?

A: It is Li- ion battery,Chemical is Li(NiCoMn)O2.

Q: What is the difference between li ion battery,NI-MH battery and Lead acid battery?

A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.

Q: What's temperature range of charge and discharge?

A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C

Q: What kind of cells used on this electric bicycle battery?

A: Different capacity with different cells, we make the battery with original A grade Samsung,Panasonic,Sanyo,LG and high quality domestic cells,all can be customized as your requests.

Q: Do your e-bike battery come with charger?

A: All of our e-bike batteries come with charger.We have normal charger and fast charger.If you need fast charger please contact with us.

Q: Do your electric bike batteries come with BMS?

A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.

Q: Does your electric bicycle battery come with quality warranty?

A: Yes, we provide 1 year warranty for all electric bicycle batteries.

Q: What's your delivery time?

A: Electric Bike Battery will be sent out within 7 days after confirmed order, shipping will cost 3-15 working days,it depends on quantity and which battery you need.

Q: Can you provide OEM and ODM service?

A: Yes, We are a professional Electric Bike Battery manufacturer which produce all kind of high quality E-bike Lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.



Lithium battery features

Longer battery life, the life expectancy is two times that of lead-acid batteries.

Rechargeable and no memory effect.

The weight is more lighter.

Smaller dimensions and can be customized.

Safer and more environmentally friendly, No heavy metals and hazardous substances.

BMS built-in IC chip will prevent battery pack over charge, over discharge, over-current,

over-heat, short circuit .



Warnings

Do not immerse the battery in water or seawater, keep the battery stands by in a cool dry surrounding.

Does not use or leave the battery near a heat source as fire or heater.

Use the battery charger specifically for that purpose when recharging.

Do not reverse the position and negative terminals.

Do not connect the battery electrodes to an electrical outlet.

Do not discard the battery in fire or a heater.

Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.

Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.

Do not strike, trample or throw the battery.

Do not directly solder the battery and pierce the battery with a nail or other sharp objects.
